ictinnovations/asterisk-ai-voice-agent repository overview

⁠asterisk-ai-voice-agent

Put an AI agent on the phone. Asterisk bridges a live call to this sidecar over AudioSocket⁠, and the sidecar runs a streaming speech-to-text → LLM → text-to-speech loop, so the caller has an actual back-and-forth conversation, interruptions and all. It's self-hosted: your PBX, your API keys, your prompts, no per-minute SaaS in the middle.

  ┌────────┐   RTP    ┌──────────┐  AudioSocket (TCP)  ┌───────────────────────┐
  │ Caller │◀───────▶│ Asterisk │◀───────────────────▶│  ai-voice-agent       │
  └────────┘          └──────────┘   slin16 8 kHz      │  STT → LLM → TTS loop │
                                                        │  + tool calling       │
                                                        └───────────┬───────────┘
                                                  Whisper/Scribe · Claude · Piper/ElevenLabs

⁠What you get

• Speech in via OpenAI Whisper or ElevenLabs Scribe, with WebRTC VAD deciding when you've stopped talking.
• The brain is Anthropic Claude, streamed token-by-token so the agent starts replying before the whole answer is ready. Swapping in another LLM means implementing one small module interface, documented in PORTING.md⁠.
• Speech out via Piper⁠, which runs locally and costs nothing, or ElevenLabs if you want their voices. Either way it's resampled to the 8 kHz slin16 that Asterisk expects.
• Barge-in. Start talking and the agent shuts up, like a real conversation.
• Tool calling. Let the model transfer the call, schedule a callback, look something up in your CRM. Calls go out to a webhook you control, so the actual logic stays in your stack.
• Personas are just YAML: a greeting, a system prompt, which voice, which model, which tools.
• The pacing is handled. This is the part everyone gets wrong the first time (more below).
• Runs in Docker. docker compose up, point Asterisk at it, done.

⁠How it works

1. Your dialplan answers a call and runs AudioSocket(<uuid>,<host>:9092), passing a persona name via a channel variable.
2. The sidecar accepts the AudioSocket connection, reads the UUID frame, and loads that persona from personas.yaml.
3. It speaks the greeting (TTS → AUDIO frames), then loops: caller audio → STT → on a final transcript, stream the LLM reply → buffer to sentence boundaries → TTS → paced AUDIO frames back.
4. If the LLM emits a tool_use, the sidecar POSTs it to your configured tools webhook, feeds the result back, and continues.
5. On hangup it tears the call down and (optionally) POSTs a transcript to your webhook.

The AudioSocket framing/pacing lives in a standalone, tested package: asterisk-audiosocket⁠ (Node/TypeScript), and in asterisk_ai_voice_agent/audiosocket.py⁠ here (Python). Same wire protocol, pick your language.

⁠Quick start (Docker)

git clone https://github.com/ictinnovations/asterisk-ai-voice-agent
cd asterisk-ai-voice-agent
cp config.example.yaml config.yaml          # add your API keys
cp personas.example.yaml personas.yaml      # define your agent(s)
docker compose up -d

⁠Quick start (pip)

Piper's phonemizer needs espeak-ng on the host, so install that first.

sudo apt-get install -y espeak-ng
pip install asterisk-ai-voice-agent

cp config.example.yaml config.yaml
cp personas.example.yaml personas.yaml
AI_AGENT_CONFIG=config.yaml AI_AGENT_PERSONAS=personas.yaml asterisk-ai-voice-agent

Add to your Asterisk extensions.conf:

#include "ai-voice-agent.conf"

Copy asterisk/ai-voice-agent.conf⁠ into /etc/asterisk/ and dialplan reload, then test. This rings your SIP phone and, when you answer, drops you into the demo persona:

# Replace PJSIP/1001 with your own endpoint (e.g. SIP/1001, PJSIP/myphone).
asterisk -rx 'originate PJSIP/1001 extension demo@ai-agent-test'

Answer the phone and talk to the agent. To route real traffic, point any inbound DID, queue, or extension at the bridge:

exten => _X.,1,Set(PERSONA=support)
 same => n,Goto(ai-agent-bridge,s,1)

⁠Persona config

# personas.yaml
demo:
  greeting: "Hi! Thanks for calling. How can I help you today?"
  system_prompt: |
    You are a friendly, concise phone assistant for Acme Corp.
    Keep answers short and natural for speech. Never invent facts.
  llm_provider: anthropic
  llm_model: claude-sonnet-4-6
  llm_temperature: 0.4
  stt_provider: openai         # Whisper
  stt_language: en
  tts_provider: piper          # or elevenlabs
  tts_voice_id: en_US-amy-medium
  interrupt_enabled: true      # barge-in
  max_call_seconds: 900
  tools_enabled: [transfer, schedule_callback]   # posted to your webhook

⁠Requirements

• Asterisk 18+ built with app_audiosocket / res_audiosocket.
• Python 3.10+ (or just Docker).
• API keys for your chosen providers. Piper TTS is fully local (no key, no cloud).

⁠Configuration

config.yaml holds infrastructure + keys; personas.yaml holds agents. See the *.example.yaml files for the full annotated schema. Key sections:

⁠Latency and network tuning

The sidecar sets TCP_NODELAY on every accepted AudioSocket connection, so there's nothing to configure. Outbound audio is one 320-byte frame every 20 ms, and Nagle's algorithm holds writes that small back waiting for more data to coalesce with, which is the opposite of what a paced audio stream wants.

If Asterisk and the sidecar run on the same box over loopback, that's the whole story. Across a network, one kernel knob is worth knowing about:

# Corking can still batch small writes together even with TCP_NODELAY set.
sysctl -w net.ipv4.tcp_autocorking=0

We haven't benchmarked that one, so measure before you keep it. Ignore the older net.ipv4.tcp_low_latency advice you'll find in forum posts; the knob was removed in Linux 4.14 and does nothing today.

⁠Tool calling (webhook contract)

When the LLM calls a tool, the sidecar POSTs:

{ "session": "<uuid>", "tool": "transfer", "args": { "target": "queue:sales" } }

Your endpoint returns a JSON result, which is fed back to the LLM as the tool result. Implement transfer/CRM/scheduling however your stack does it. (In ICTContact these map to Asterisk AMI redirects, spool updates, and CRM connectors.)

⁠Troubleshooting

Logs: set AI_AGENT_LOG=DEBUG (env or compose) for per-frame detail.

⁠What it looks like with a UI

This project is a headless sidecar. You configure it with YAML and there's nothing to log into, by design.

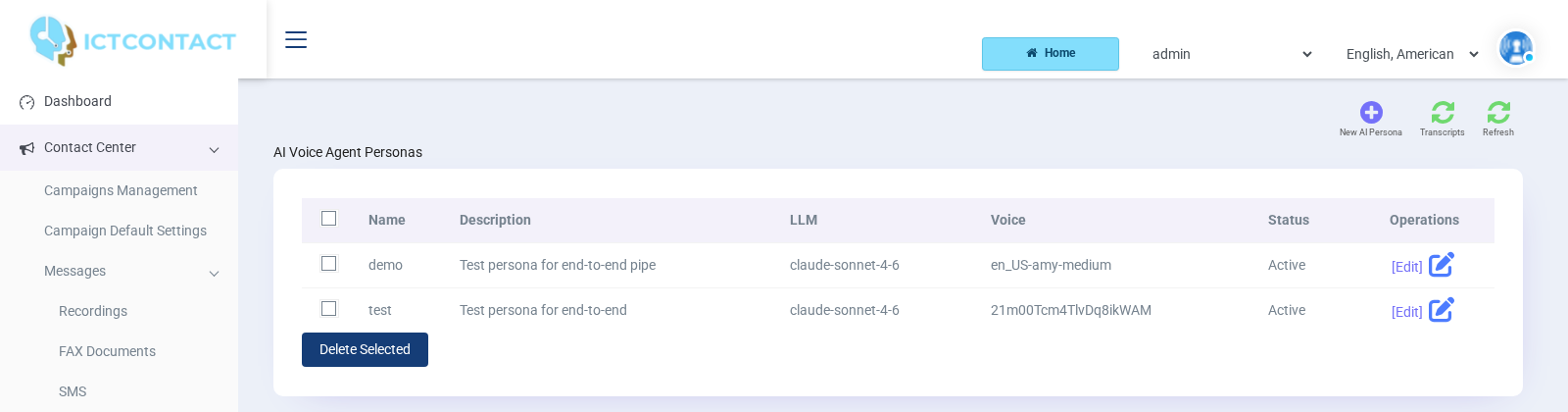

The screenshots below come from ICTContact⁠, the commercial platform this agent was pulled out of. They show the same persona model that personas.yaml describes here, so they're a useful map of what the fields mean in practice, and of what a front end over this sidecar can look like if you build one.

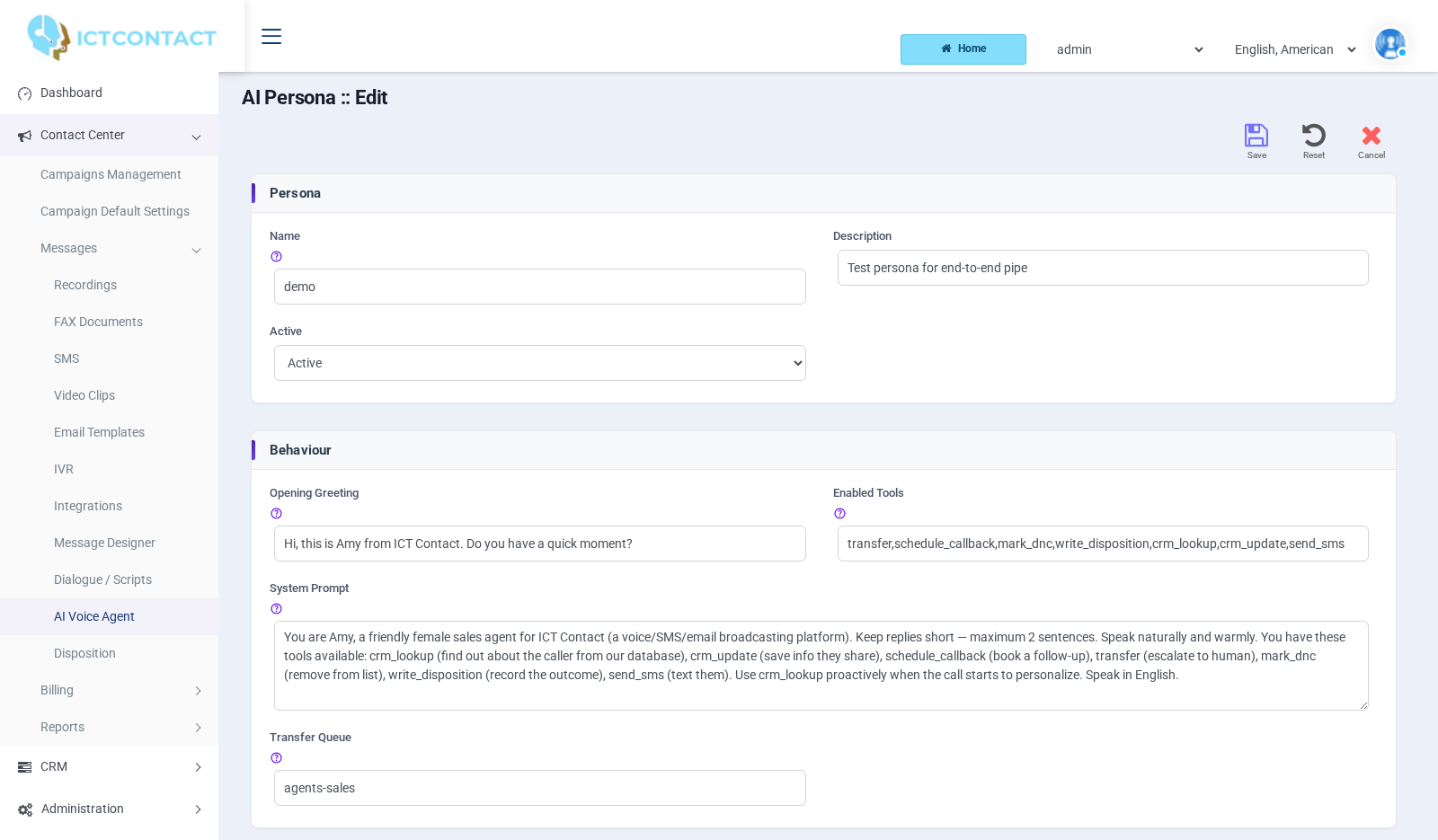

A persona carries a greeting, a system prompt and the toolbelt the model is allowed to reach for. Those map one to one onto greeting, system_prompt and tools_enabled in the YAML.

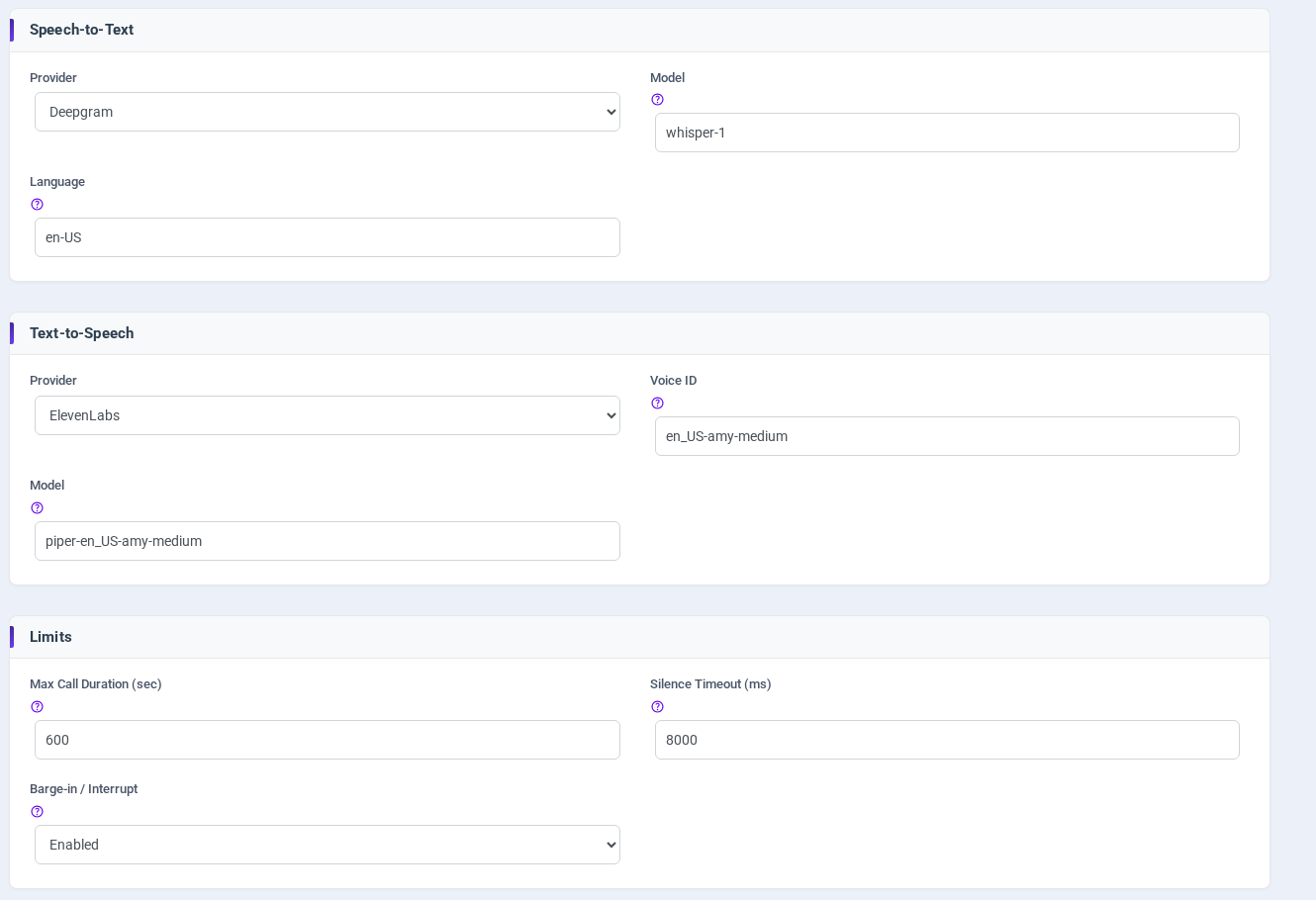

Speech-to-text, text-to-speech, call limits and barge-in are per persona too, so one number can answer with a local Piper voice and another with ElevenLabs.

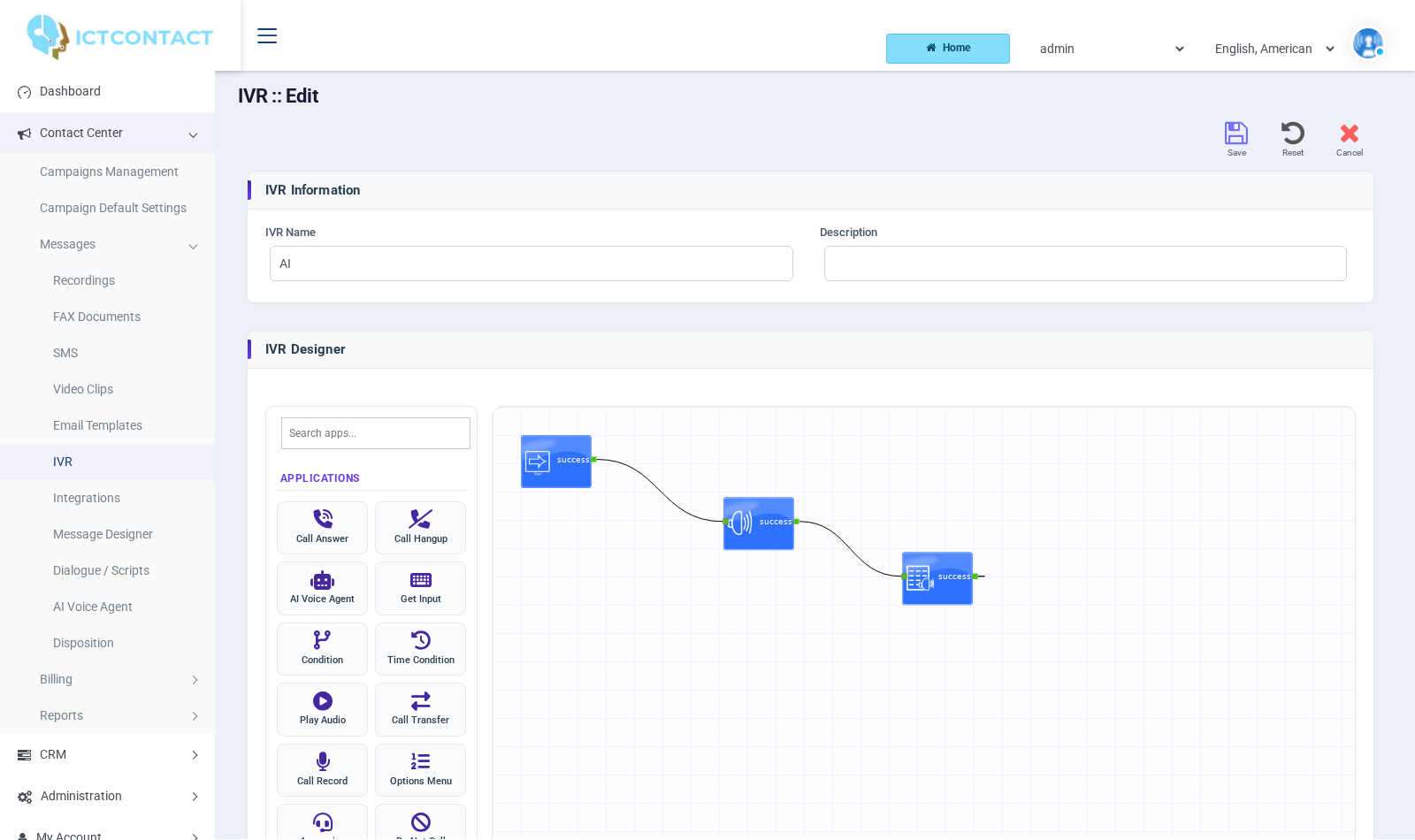

In ICTContact the agent is a node in the IVR designer, so a menu option hands the caller over and the agent hands back. You get the same effect from the dialplan here: route to AudioSocket() when you want the agent, and let it transfer out through the transfer tool.

⁠Related open source

• asterisk-audiosocket⁠ - the AudioSocket protocol layer on its own, in TypeScript. Prefer Node over Python? Build the agent in whatever language you like.
• asterisk-ami-node⁠ - Asterisk Manager Interface client, zero dependency. This is what you reach for to implement the transfer tool.
• freeswitch-esl-node⁠ - the same idea for the FreeSWITCH Event Socket.
• pbx-mcp⁠ - a Model Context Protocol server that gives AI assistants a read-only window into Asterisk and FreeSWITCH.
• ICTCore⁠ - the open source telephony framework behind our products.

⁠Provenance & credits

This started life inside ICTContact⁠, our commercial Voice/Fax/SMS/Email broadcasting and contact-center platform, where the same pipeline runs the AI Voice Agent and live voice-translation features. We pulled out the reusable core, cut the platform-specific parts (multi-tenancy, billing, our internal REST layer), and opened it up so you don't have to build the AudioSocket-to-LLM plumbing from scratch.

Maintained by ICT Innovations⁠ and ICT Vision⁠, who have been shipping open source and commercial telephony since 2005. Written by Tahir Almas.

If this is useful to you, the wider stack behind it might be too:

• ICTPBX⁠ - white label multi tenant IP PBX, with a free community edition on GitHub
• ICTContact⁠ - contact center and unified communications, where this agent came from
• ICTDialer⁠ - auto and predictive dialer
• ICTFax⁠ - open source fax server

Questions about the commercial products go through the ICT Innovations support portal⁠. Issues and pull requests about this project belong on GitHub, where everyone can read the answer.

⁠License

MIT⁠. © Tahir Almas / ICT Innovations, derived from ICTContact.
