Short Description
Generate Vault APP-ID Token based on AWS EC2 Identity Document
Full Description

Avocado

This is a project to generate Vault token againest Vault APP-ID backend based on AWS EC2 Identity Document.

Problem to solve

Vault is a powerful service to manage and control secrets. In order to use Vault to generate new secrets or reading existing secrets, user has to have a token, which can be a risk of security. Avocado is to solve this chicken-and-egg problem.

Use Cases

  • Auto generate Vault token with specified Vault policy without knowing any existing Vault token
  • Protect token request replays. Token only generated once from the same EC2, repeatable requests are ignored
  • Easier app-id and user-id management than using Vault command line. Avocado saves project metadata (Vault policy, app-id, instance list, etc) in a consul K/V pair.

    Avocado is supposed to be running on a secure environment where only limited people has access

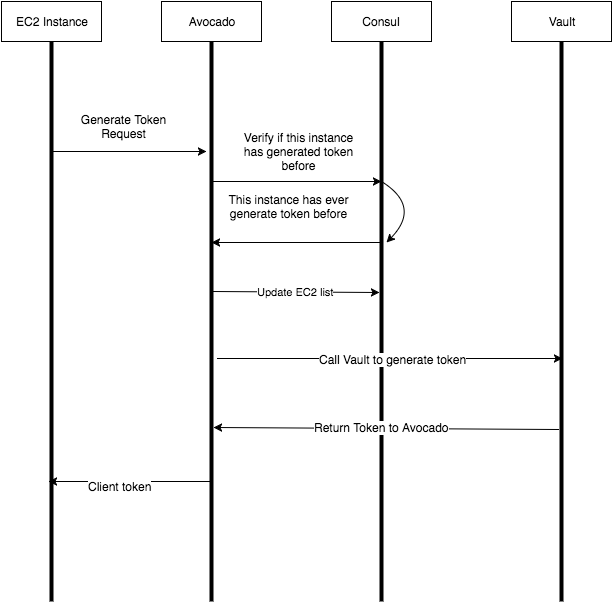

How it works

  1. Token requester send POST request to Avocado with it's EC2 identity document and the PKCS7 Signature
  2. Avocado verifies the EC2 PKCS7 signature to make sure the token requester is from trusted source
  3. Avocado checks if this EC2 is already in the list of instances on Consul K/V pairs, if true, ignores the request, otherwise, adds the metadata of token requester to the instance list
  4. If both step #2 and #3 passed, Avocado calls Vault http APP ID auth backend API to create new user-id and map to existing app-id, then generate token based on pre-defined policy and return to token requester.
  5. Since there's no lease period for the APP ID token, thus there's no need to renew

Consul EC2 metadata

In order to proceed the instance check between Avocado and Consul, Consul must have following setups done:

  • Naming convention: project_name + "/" + project_env. This is pretty standard KEY pattern for Consul. For example, if the K/V pair belongs to PRODUCTION environment of project DEMO, then the keys should be DEMO/PRODUCTION. Avocado is following this pattern to automatically generate request URL.

  • Metadata: To proceed the instance check, the JSON below needs to be saved as Value paired with the Key mentioned above:

    {
    "project": "demo",
    "policy": "demo_production", # The policy name in Vault which all new Vault token use
    "app_id": "demo_production", # Optional, if not available, Avocado uses "project_environment" as app_id and create mapping on Vault.
    "instances":                 # Optional, Avocado checks if EC2 Mac address is registered before to avoid duplicate
      [
          {
            "devpayProductCodes": null,
            "availabilityZone": "us-west-00",
            "instanceId": "i-abcdefg",
            "region": "us-west-00",
            "privateIp": "172.0.0.0",
            "version": "2010-08-31",
            "architecture": "x86_64",
            "billingProducts": null,
            "kernelId": null,
            "ramdiskId": null,
            "imageId": "ami-123456",
            "instanceType": "t2.medium",
            "pendingTime": "2015-09-30T05:08:29Z",
            "accountId": "1234567890"
          },
          {
           ...
          }
      ]
    }


Vault config

  • Client Policy must be defined before token requester sending requests.
  • App-id auth backend is enabled

API

/register-ec2

METHOD: POST

REQUEST HEADER: Content-Type:application/json

PARAMETERS: All mandatory

  • project_id: String of the project name, e.g: demo
  • project_env: String of the project running envionment, e.g: production, dev, qa
  • pkcs7_sig : String of the PKCS7 Signature.

    Note that the value of pkcs7_sig MAY need to be encoded to be used as URL parameter if it contains characters like +

BODY: The identity document JSON

{
    "devpayProductCodes": null,
    "availabilityZone": "us-west-00",
    "instanceId": "i-abcdefg",
    "region": "us-west-00",
    "privateIp": "172.0.0.0",
    "version": "2010-08-31",
    "architecture": "x86_64",
    "billingProducts": null,
    "kernelId": null,
    "ramdiskId": null,
    "imageId": "ami-123456",
    "instanceType": "t2.medium",
    "pendingTime": "2015-09-30T05:08:29Z",
    "accountId": "1234567890"
}

RESPONSE

{"token": "284a477e-cd93-554b-b0b4-69c5ac24cc82"}

Build and Run

  • Install dependency

    cd avocado
    sudo pip install -r requirements.txt

  • Config
    Avocado requires following variables to run

    • VAULT_HOST
    • VAULT_TOKEN
    • CONSUL_HOST
  • In order to run the application, we'll start it with the built-in server:

    python avocado.py &


Run in docker

docker pull minzhang/avocado
docker run -d -p 5000:5000 \
-e VAULT_HOST=$VAULT_HOST \
-e VAULT_TOKEN=$VALUT_TOKEN \
-e CONSUL_HOST=$CONSUL_HOST \
--name avocado \
minzhang/avocado

Health check

curl localhost:5000/Health
{"status": "OK"}

Request example

curl -X POST -d "$EC2_Identity_DOC_JSON" \
    --header "Content-Type:application/json"  \
    "http://localhost:5000/register-ec2?project_id=demo&project_env=production&pkcs7_sig=$encode_key"

Success response

{"token": "284a477e-cd93-554b-b0b4-69c5ac24cc82"}

Signature Verification Failure response

{"error": "Invalid signature"}

Registration Failure response

{"message": "Your registration is failed due to duplication. Please double check your registration info is unique"}

License

Licensed under MIT.
Copyright by Min Zhang.
