⁠adb-hass-androidtv

⁠Overview

Connect to and control androidtv/firetv/googletv devices through ADB.

This image will start an ADB (Android Debug Bridge) server listening on port 5037 and connect to a list of specified androidtv/firetv/googletv devices over the network. This will allow you to integrate them with Home Assistant⁠ using the AndroidTV integration⁠.

⁠Features

• Quick and easy connection to Android based devices over the network.
• Lightweight Alpine based image.
• Supports environment variable or yaml file configuration.
• Support for devices based up to Android 15.
• Support wireless ADB connections (adbwifi) that require pairing code and pairing port.
• Input validation.
• Logging with rotation.

⁠Usage

⁠Docker

Run in docker, mounting a volume that stores a config.yml file for configuration:

docker run -it -v /tmp:/opt/androidtv-connect barnybbb/adb-hass-androidtv:latest

Run in docker, using environment variables:

docker run -it -e devicelist=192.168.1.100,192.168.1.101::739264:44556 -e bootwait=10 -e checkfreq=60 barnybbb/adb-hass-androidtv:latest

Docker compose, mounting a volume that stores a config.yml file for configuration:

services:
  adb-hass-androidtv:
    image: barnybbb/adb-hass-androidtv:latest
    hostname: adb-hass-androidtv.local
    container_name: adb-hass-androidtv
    ports:
      - 5037:5037
    volumes:
      - /tmp:/opt/androidtv-connect
    restart: unless-stopped

Docker compose, using environment variables:

services:
  adb-hass-androidtv:
    image: barnybbb/adb-hass-androidtv:latest
    hostname: adb-hass-androidtv.local
    container_name: adb-hass-androidtv
    ports:
      - 5037:5037
    environment:
      devicelist: 192.168.1.100,192.168.1.101::739264:44556
      bootwait: 10
      checkfreq: 300
    restart: unless-stopped

⁠UnRAID

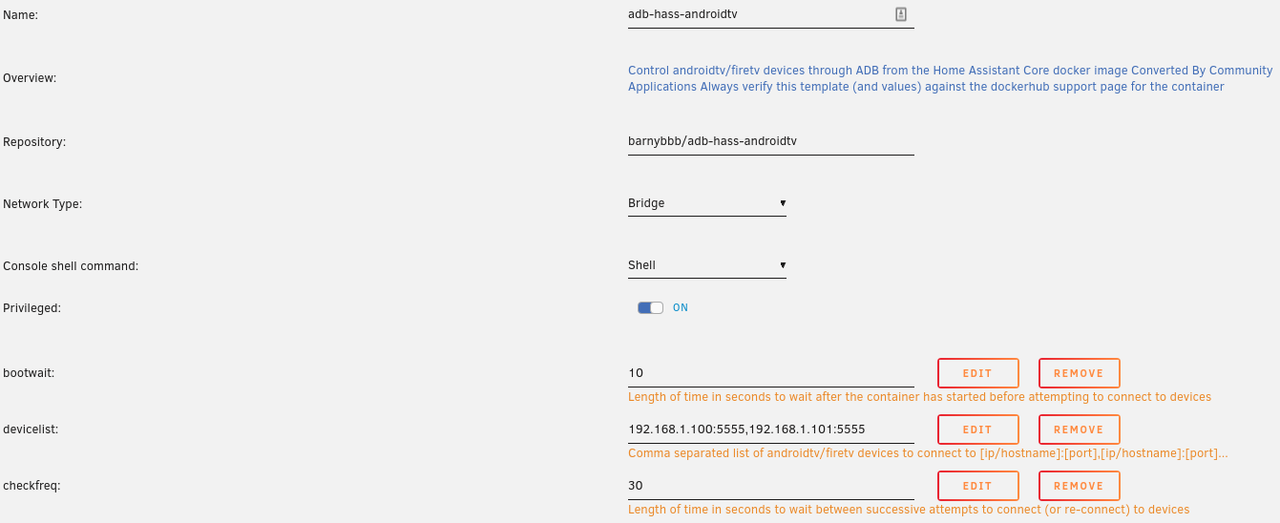

You can use the UnRAID Community Template provided details are available on the UnRAID Forums⁠.

⁠Configuration

Configuration is managed via a YAML file (config.yml) located in /opt/androidtv-connect, or by setting environment variables. See below.

⁠Configuration Options

These can be specified as environment variables or included in the config.yml file. Options provided in the config.yml will override any provided as environment variables.

For the environment variable devicelist must be a comma separated list of devices specified in the following format:

<host>[:<port>][:<auth_code>:<auth_port>]

• <host> - required, IP address or hostname of the Android device
• <port> - optional, defaults to 5555 if not specified
• <auth_code> - optional, pairing code for ADB wireless pairing
• <auth_port> - optional, pairing port for ADB wireless pairing (must be specified with <auth_code>)

Examples:

• 192.168.1.100 - specify a single device, will default to connect to ADB port 5555
• 192.168.1.100:5555,192.168.101:5555 - specify two devices, both connecting to ADB port 5555
• 192.168.1.101:5555:739264:44556 - specify a single device, with auth_code and auth_port specified
• 192.168.1.100,192.168.1.101::739264:44556 - specify two devices, with the second device using the default port of 5555 and with auth_code and auth_port specified

⁠Typical Configuration File Example

devicelist:
  - name: Living Room TV
    host: 192.168.1.100
    port: 12345
  - name: Bedroom TV
    host: 192.168.1.101
    port: 15555
    auth_code: 739264
    auth_port: 44556

⁠Full Configuration File Example

bootwait: 10
checkfreq: 300
enable_adb_usb: no
devicelist:
  - name: Living Room TV
    host: 192.168.1.100
    port: 5555
    auth_code: 48273
    auth_port: 11223
  - name: Bedroom TV
    host: 192.168.1.101
    port: 5555
    auth_code: 739264
    auth_port: 44556

⁠Home Assistant

• Install the Android Debug Bridge integration
  • Settings
  • Add integration
  • Search for Android Debug Bridge

• Add each Android device (as you have configured in the container settings)
  • Settings
  • Android Debug Bridge
  • Add device
  • Complete the device configuration
    • Host: the hostname/IP of your Android device (as configured in the devicelist)
    • Port: the port your Android device is listening on (as configured in the devicelist)
    • IP address of the ADB server: the hostname/IP address of the barnybbb/adb-hass-androidtv docker container
    • Port of the ADB server: port that the barnybbb/adb-hass-androidtv docker container is listening on (default 5037)
  • Submit

⁠License

This project is licensed under the MIT License. See the LICENSE⁠ file for details.
