⁠auzui — A Usable Zabbix UI

auzui is a modern, self-hosted monitoring single-page application that runs next to your existing Zabbix⁠ web UI — not instead of it. Configuration and administration stay in the classic Zabbix UI for now; auzui focuses entirely on the monitoring workflows that benefit most from a rebuilt, fast, dense, dark-mode-first interface: Problems triage, Host deep-dives, Latest Data, auto-generated dashboards, and infrastructure exploration — all driven by Zabbix's existing JSON-RPC API.

The guiding principle is Zero-Config Deep Observability: auzui derives as much as it can automatically from what Zabbix already knows (item tags, units, templates, trigger expressions, LLD, inventory) instead of asking operators to configure dashboards, panels, or thresholds by hand.

⁠Screenshots

Live, click-through demo (mocked data, no backend required): cygnusnetworks.github.io/auzui/demo⁠.

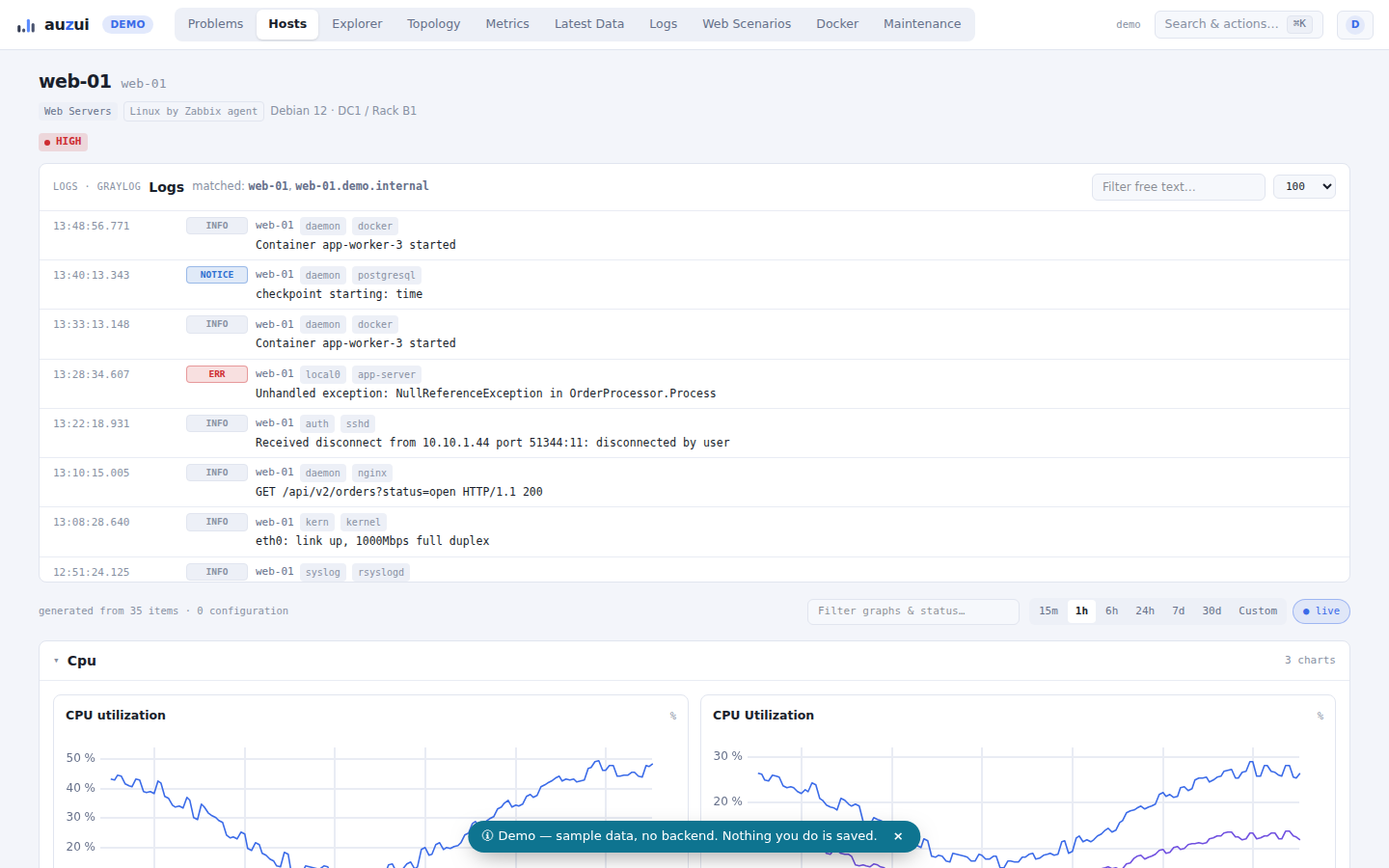

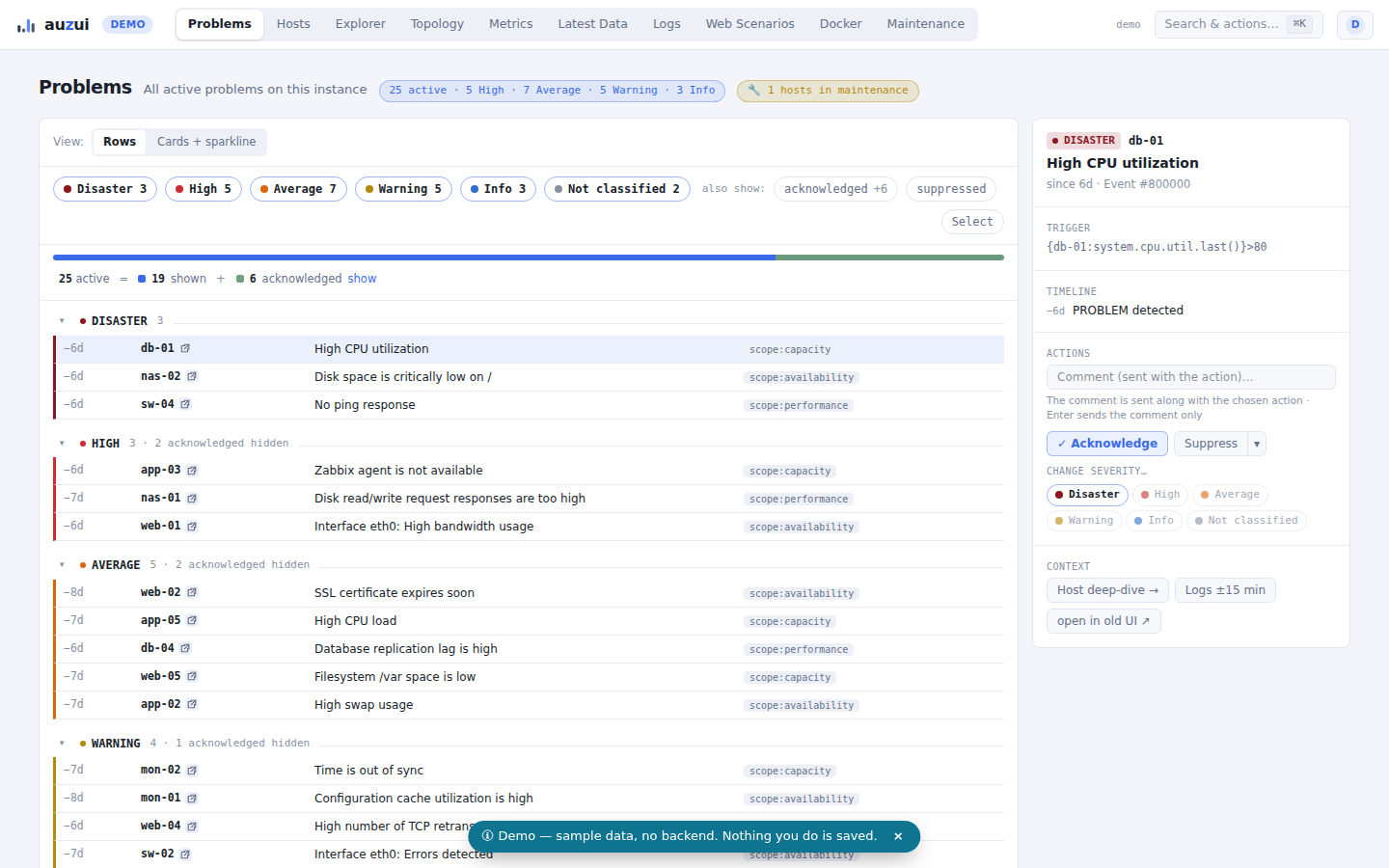

Problems — live triage board	Host detail — auto-generated dashboard

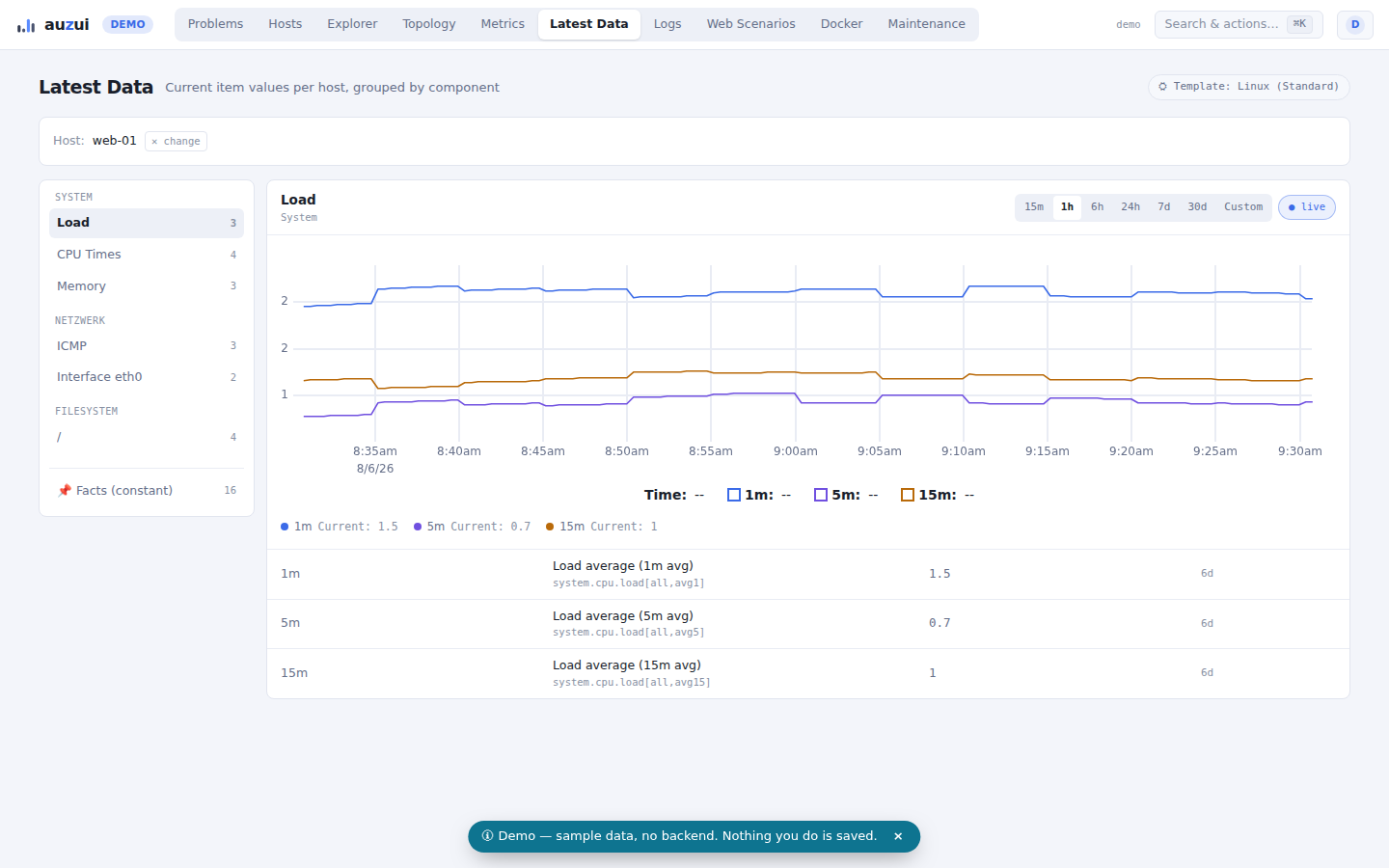

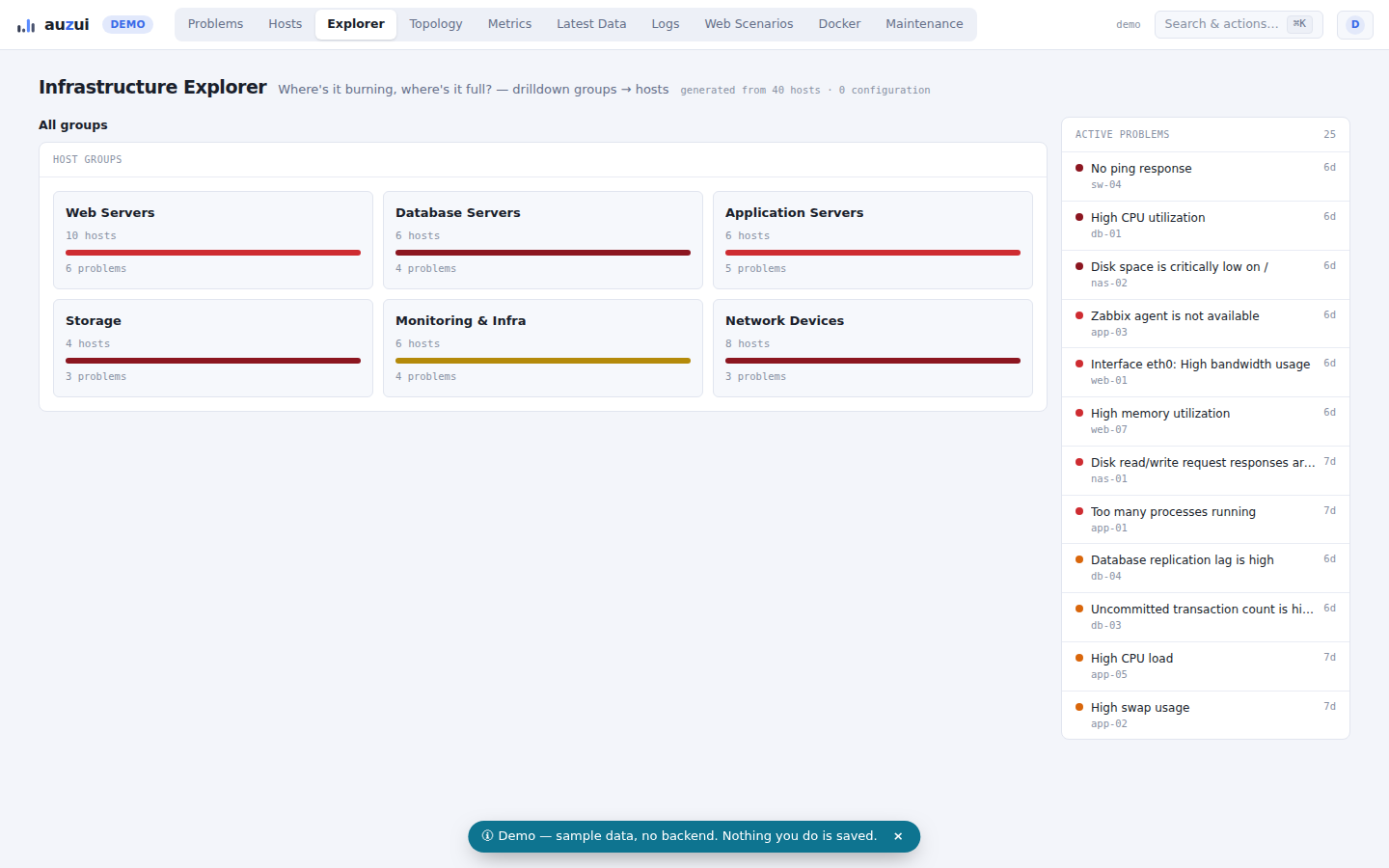

Latest Data	Explorer — heatmap drill-down

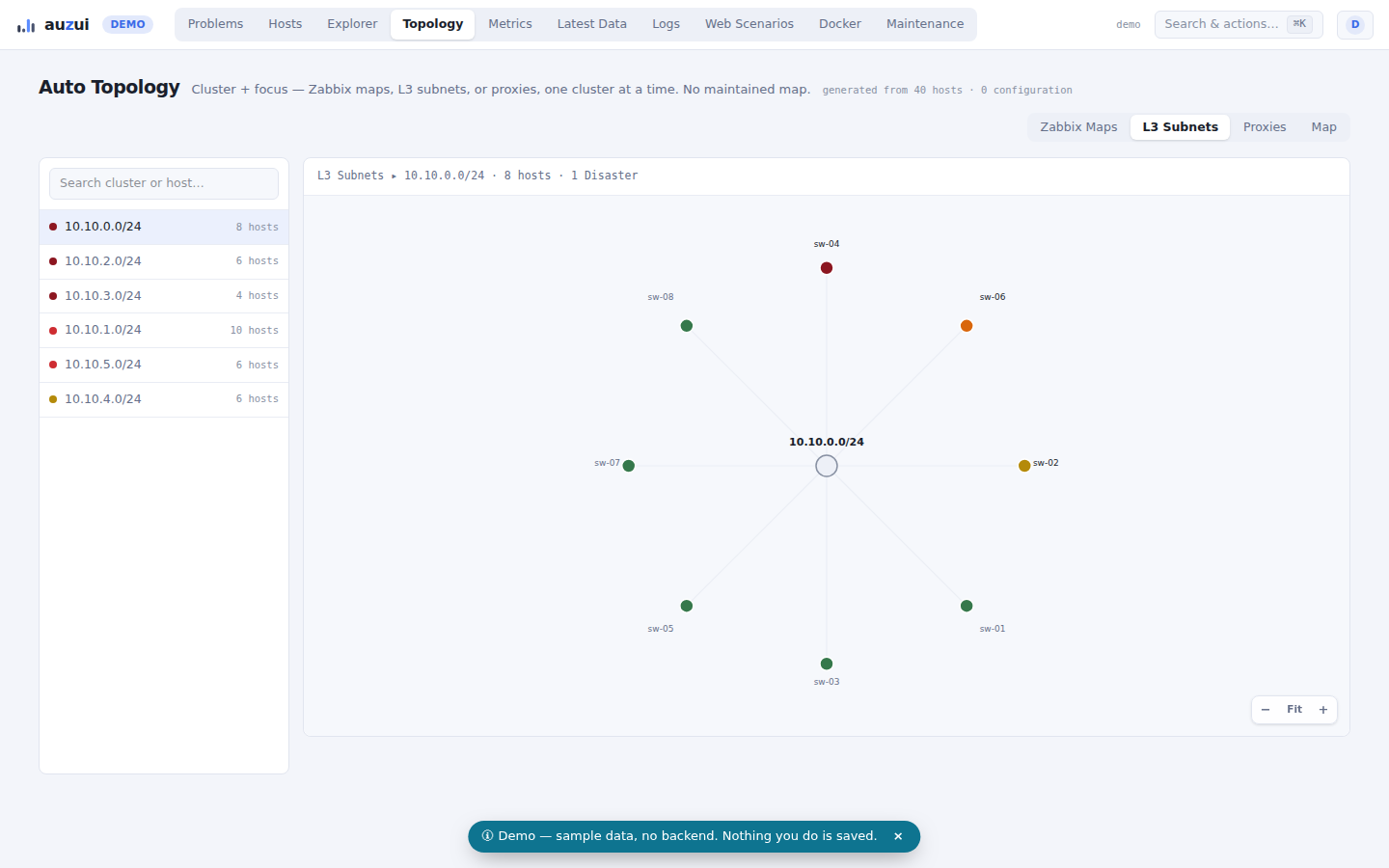

Topology — dependency graph	Metrics — faceted metric browser

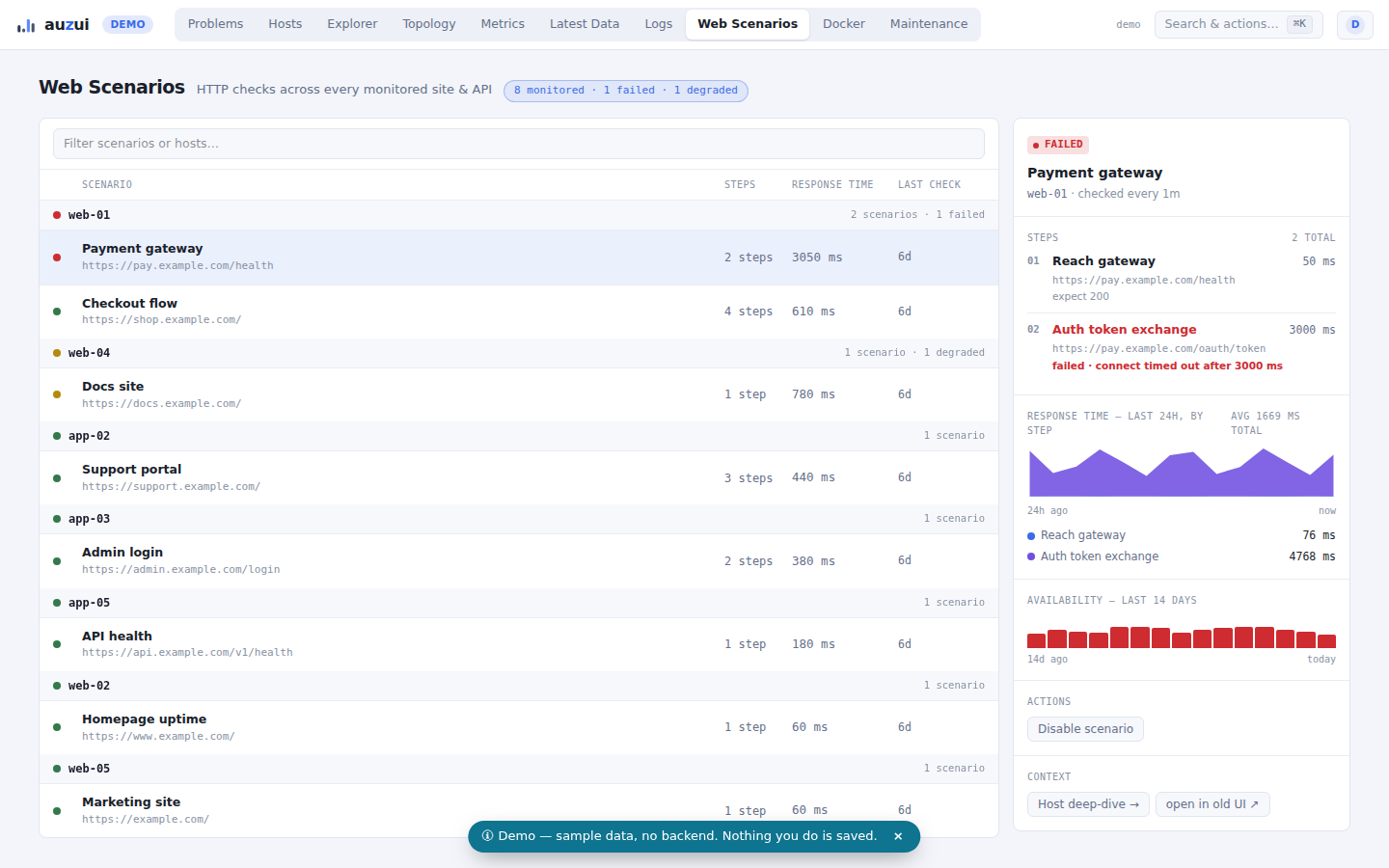

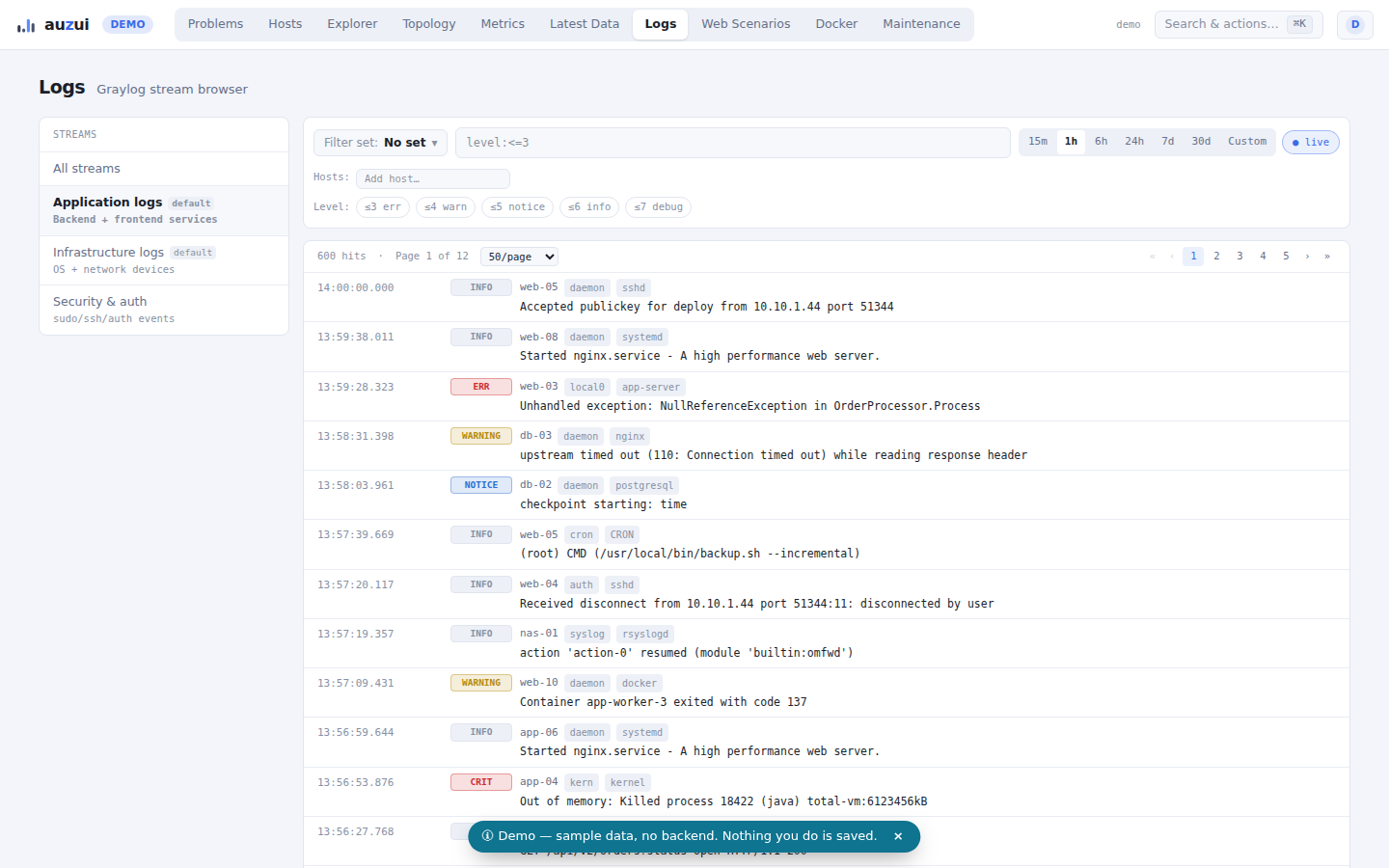

Logs — Graylog-backed log panel (optional)	Web Scenarios — HTTP-check status, per-step timing, availability

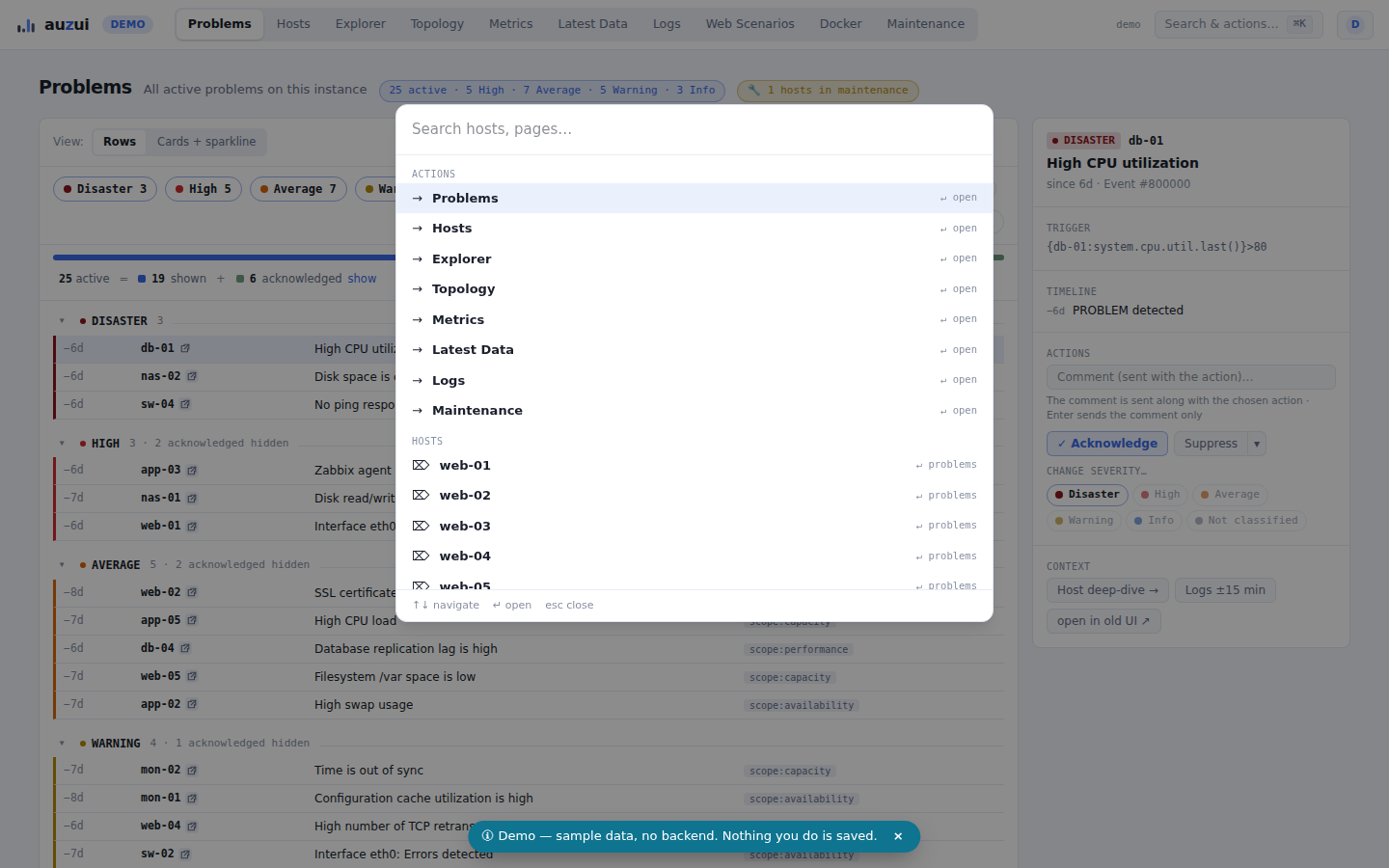

⌘K — command palette

⁠Why auzui

The stock Zabbix web UI (ui/ in the Zabbix source tree) is a large, ~1,700-file PHP monolith — its own MVC, hundreds of controllers, jQuery and hand-rolled ES6, no build system, server-rendered PNG graphs. It is functionally complete but shows its age in day-to-day monitoring use. auzui is a greenfield rebuild of the monitoring surface — Problems, Hosts, Latest Data, dashboards, topology — with modern navigation, native charts, a command palette, and a UI built for high information density and fast triage.

⁠Features

• Problems as a live triage board — virtualized list, inline acknowledge/comment without modal cascades, severity filter chips, bulk actions, a URL-addressable side panel instead of a popup (filters are shareable links).
• Host Deep-Dive auto-dashboards — a fully generated per-host dashboard: sections by component class, trigger thresholds rendered as chart zones, an interface/port matrix, storage & certificate forecasts, 7-day ghost lines — with zero manual dashboard configuration.
• Infrastructure Explorer — heatmap drill-down from host groups → host tiles → component tiles → item, colored by status or utilization, with a "top movers" sidebar at every level.
• Auto-Topology — a force-directed dependency graph built from trigger dependencies, LLDP/CDP neighbors, shared subnets, and statistical event correlation, each edge tagged with its evidence layer and confidence.
• Metric Browser — faceted search across every item (component tag, unit, template, group), a small-multiples wall sortable by deviation from baseline, with multi-select overlay comparison across hosts.
• ⌘K command palette — global search over hosts/items/triggers/ dashboards plus actions ("Ack problem…", "Go to host…"), replacing deep menu navigation.
• Web Scenarios — live status for every Zabbix HTTP-check (web scenario), a master-detail view with per-step response time (stacked, so one slow step isn't buried in the total), pass/fail codes, and 14-day availability — plus a one-click enable/disable toggle.
• Dark-mode first, high information density, consistent severity color semantics, skeleton loading instead of spinners.
• Optional: InfluxDB fast path for time-series (via an effluence export) — see Time-series sources⁠ below.
• Optional: Graylog logs — a stream browser and host-scoped log panel synced to the same time range as the charts, entirely feature-gated.
• Optional: Docker container management — container list/search/logs across any number of Docker hosts (socket-proxy, TCP+mTLS, or ssh://), live stats, start/stop/restart/pull-recreate, registry update checks, and compose stack actions on SSH-connected hosts. Entirely feature-gated behind DOCKER_HOSTS; see docs/configuration.md⁠.

⁠Architecture

┌──────────────────────────────────────────────────────────────┐
│  auzui SPA (React + TS, Vite)                                │
│  TanStack Router/Query · shadcn/ui · uPlot                   │
└──────────┬────────────────────┬──────────────────┬───────────┘
           │ JSON-RPC (Bearer)  │ /api/ts          │ /api/logs (opt.)
           ▼                    ▼                  ▼
  api_jsonrpc.php        auzui-gateway (optional, small)
  (existing PHP UI,      – Flux aggregateWindow ("N points over range")
   run headless)         – hides the Influx token
                          – optional: Graylog proxy (token, streams, search)
           │                    │                  │
           ▼                    ▼                  ▼
   PostgreSQL/Timescale     InfluxDB 2         Graylog REST API
                            (effluence)        (streams + search)

The existing Zabbix web UI is kept running as a headless API backend (its JSON-RPC layer lives in the PHP frontend, not the C server — auzui does not reimplement it). auzui-gateway is needed for the optional integrations — InfluxDB time-series, Graylog logs, and Kerberos/SPNEGO SSO; without it, the SPA talks straight to api_jsonrpc.php with password login and everything else still works. Full breakdown: docs/architecture.md⁠.

⁠Time-series sources

auzui reads time-series through a TimeseriesSource abstraction with two implementations:

• ZabbixApiSource (default, always available) — history.get for short/recent ranges, trend.get for longer windows. Serves Latest Data, sparklines, and chart ranges directly from the Zabbix API.
• InfluxSource (optional, primary when configured) — routes through auzui-gateway to a Flux aggregateWindow query, downsampled server-side. Recommended for long ranges and dense multi-item dashboards.

auzui is fully usable without InfluxDB; with an effluence export configured, charts cover arbitrary ranges with server-side downsampling. Details, the effluence schema, and the Flux query reference: docs/timeseries-sources.md⁠.

⁠Monorepo layout

frontend/                 Vite + React 19 + TypeScript SPA
packages/
  zabbix-client/           typed JSON-RPC client
  timeseries/              TimeseriesSource abstraction (Zabbix + Influx) + LTTB
  logs/                    LogSource abstraction (Graylog), optional
services/
  gateway/                 auzui-gateway (FastAPI) — optional Influx/Graylog proxy
docs/                      architecture, deployment, time-series notes
site/                      static product page (GitHub Pages)

⁠Run with Docker

One image contains the gateway and the built SPA (served by the gateway, single origin). Only ZABBIX_API_URL is required:

docker run -d --name auzui \
  -p 127.0.0.1:8080:8000 \
  -e ZABBIX_API_URL=https://zabbix.example.com/api_jsonrpc.php \
  ghcr.io/cygnusnetworks/auzui:latest
# alternatively, the same image from Docker Hub:
#   cygnusnetworks/auzui:latest

The same image is published to both ghcr.io/cygnusnetworks/auzui⁠ and Docker Hub (cygnusnetworks/auzui)⁠ (linux/amd64 + linux/arm64); tags: latest (main), stable + X.Y.Z + X.Y (release tags).

For docker compose, copy docker-compose.example.yml⁠ to docker-compose.yml and adjust:

services:
  auzui:
    image: ghcr.io/cygnusnetworks/auzui:latest
    # alternatively: cygnusnetworks/auzui:latest (Docker Hub)
    restart: unless-stopped
    ports:
      # Bind to localhost; put a reverse proxy (nginx/traefik) in front
      # for TLS and external access.
      - "127.0.0.1:8080:8000"
    environment:
      ZABBIX_API_URL: "https://zabbix.example.com/api_jsonrpc.php"
      # Optional integrations (all feature-gated, see docs/configuration.md):
      # INFLUX_URL / INFLUX_TOKEN / INFLUX_ORG   — InfluxDB time-series
      # GRAYLOG_URL / GRAYLOG_TOKEN              — Graylog log panels
      # DOCKER_HOSTS / DOCKER_REGISTRIES         — Docker container management
      # SPNEGO_ENABLED / KRB5_KTNAME             — Kerberos SSO

InfluxDB, Graylog, and Docker stay disabled until their variables are set; the corresponding UI surfaces hide themselves. Every setting above can also be provided via a mounted TOML/YAML config file instead of environment variables (AUZUI_CONFIG_FILE) — see docs/configuration.md⁠ and examples/⁠. Reverse-proxy pattern with the recommended security headers: docs/deployment.md⁠.

⁠Development quickstart

Prerequisites: Node ≥ 22, pnpm⁠ (version pinned via packageManager in package.json), and uv⁠ for the optional gateway.

# Frontend + workspace packages
pnpm install
pnpm dev            # runs the frontend/ dev server

# Optional: auzui-gateway (only needed for InfluxDB/Graylog)
uv sync --package auzui-gateway --extra dev
uv run uvicorn auzui_gateway.main:app --reload --host 0.0.0.0 --port 8080

Or with just⁠:

just install
just dev            # frontend
just gateway-dev     # gateway
just lint
just test
just build

Configuration reference (Zabbix/Influx/Graylog env vars, nginx pattern, security notes): docs/deployment.md⁠ and docs/configuration.md⁠. Full documentation index: docs/README.md⁠.

⁠Links

• Product site: cygnusnetworks.github.io/auzui⁠
• Live demo: cygnusnetworks.github.io/auzui/demo⁠ (mocked data, no Zabbix/gateway required)
• Documentation index: docs/README.md⁠

⁠Clean-room statement

auzui is an independent, clean-room implementation built purely against Zabbix's documented JSON-RPC API contract. It contains no Zabbix source code. The existing Zabbix web UI is treated as an opaque, already-installed backend service that auzui talks to over HTTP — it is never read, copied, or forked. See NOTICE.md⁠ for the full licensing and trademark statement.

⁠Contributing

1. Open an issue or discuss the change before large design work.
2. Keep documentation, user-facing strings, and code comments in English.
3. Do not copy any Zabbix source into the tree.
4. Run just lint and just test before opening a PR.

⁠License

auzui is licensed under the GNU Affero General Public License v3.0 (AGPL-3.0-only) — see LICENSE⁠. See NOTICE.md⁠ for the clean-room statement and trademark notes.

Copyright © 2026 Cygnus Networks GmbH.

"Zabbix" is a trademark of Zabbix LLC / SIA Zabbix. auzui is not affiliated with, endorsed by, or sponsored by Zabbix LLC/SIA; the name is used solely to describe factual interoperability with the Zabbix JSON-RPC API. "Graylog" and "InfluxDB" are trademarks of their respective owners and are used solely to describe optional, factual interoperability.
