⁠Consul Visualizer

This project is a Node.js⁠ application that connects to a running Consul⁠ instance and provides a running log and visualization of the services and nodes that have been added to Consul.

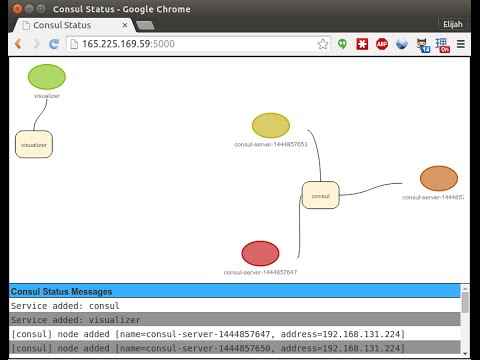

⁠Demo

⁠Setting up Consul

If you want to get a Consul instance up and running quickly, you can use this Docker image⁠ or you can use this setup script for Joyent⁠.

⁠Docker

To get started quickly, you can run this application in Docker⁠ (omit the DNS values unless you have setup Consul to act as DNS) as follows:

# Replace 192.168.131.224, 192.168.131.225 and 192.168.131.224 with the addresses
# of the three Consul servers that make up your cluster.
docker run --dns="192.168.131.224" --dns="192.168.131.225" --dns="192.168.131.226" \
           -p 5000:5000 \
           -e CONSUL_SERVERS="192.168.131.224:8500 192.168.131.225:8500 192.168.131.226:8500" \
           -e SERVICE_NAME="visualizer" \
           -e APP_PORT=5000 \
           -d --name visualizer dekobon/visual-consul

Then just visit the newly instantiated Docker instance on port 5000.

⁠Developing

To get started, you will need to:

npm install -g gulp bower

Then go to the ui/ directory and do a:

npm install .

and a:

bower install .

Then to run the node server and browser-sync together, issue the command (replacing the CONSUL_SERVERS value with a list the ips of all of the Consul servers delineated with spaces):

CONSUL_SERVERS="x.x.x.x y.y.y.y" gulp browser-sync
