FairCom Edge Docker
Multi-architecture Docker image for FairCom Edge⁠ (~400MB) targeting linux/amd64 and linux/arm64.

⁠What is FairCom Edge?

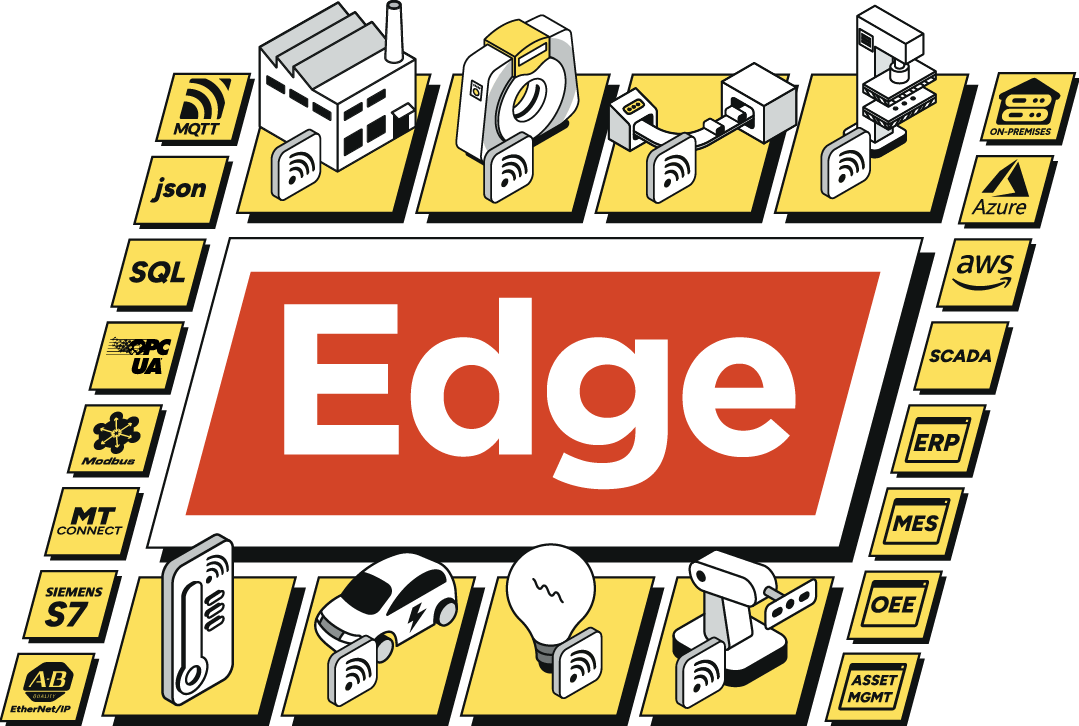

FairCom Edge is an IoT hub designed to run on the edge, from factory floors to warehouses to wind farms. It combines a database, MQTT broker, IoT connector, and transformation engine in a single platform so you can collect, process, and deliver machine data without stitching together separate tools.

• Full MQTT broker with store-and-forward messaging
• Embedded database with SQL and JSON APIs
• Protocol support for OPC-UA, Modbus, REST, and more
• JSON-based configuration, no specialized coding required
• Cloud publishing to analytics and ML platforms

⁠Using the Image

⁠Quick Start (macOS/Linux)

curl -fsSL https://raw.githubusercontent.com/toddstoffel/faircom/main/faircom_quick_start.sh | bash

Or clone the repo and run the script directly:

./faircom_quick_start.sh

Available commands:

./faircom_quick_start.sh start    # Start the container (default)
./faircom_quick_start.sh stop     # Stop and remove the container
./faircom_quick_start.sh restart  # Restart the container
./faircom_quick_start.sh logs     # View container logs

⁠Quick Start (Windows PowerShell)

.\faircom_quick_start.ps1

If script execution is blocked, run this first:

Set-ExecutionPolicy -ExecutionPolicy RemoteSigned -Scope CurrentUser

Available commands:

.\faircom_quick_start.ps1 start    # Start the container (default)
.\faircom_quick_start.ps1 stop     # Stop and remove the container
.\faircom_quick_start.ps1 restart  # Restart the container
.\faircom_quick_start.ps1 logs     # View container logs

⁠Docker Compose

The image includes a built-in HEALTHCHECK on port 8080. Use condition: service_healthy in dependent services to wait for FairCom Edge to be fully ready before starting:

services:
  faircom-edge:
    image: faircomteam/edge:latest
    container_name: faircom-edge
    restart: unless-stopped
    ports:
      - "8080:8080"   # HTTP (web apps and REST API)
      - "9001:9001"   # MQTT over WebSocket
      - "1883:1883"   # MQTT
      - "6597:6597"   # FairCom database

  your-app:
    image: your-app:latest
    depends_on:
      faircom-edge:
        condition: service_healthy

Check health status at any time:

docker inspect --format='{{json .State.Health.Status}}' faircom-edge

⁠Docker CLI

docker run -d \
  --name faircom-edge \
  -p 8080:8080 \
  -p 9001:9001 \
  -p 1883:1883 \
  -p 6597:6597 \
  faircomteam/edge:latest

⁠Data Persistence

Mount a volume to retain data across container restarts:

docker run -d \
  --name faircom-edge \
  -p 8080:8080 -p 9001:9001 -p 1883:1883 -p 6597:6597 \
  -v faircom-data:/opt/faircom/data \
  faircomteam/edge:latest

⁠Access

Once running, the following are available:

Default credentials: ADMIN / ADMIN

⁠Web Applications

⁠Ports

⁠Image Details

⁠Building the Image

⁠Prerequisites

1. Docker Desktop with buildx support

2. FairCom Edge binary tarballs downloaded from faircom.com/products/download-edge⁠:

   • FairCom-Edge.linux.el8.x64.64bit.<version>.tar (for linux/amd64)
   • FairCom-Edge.linux.arm_generic.64bit.<version>.tar (for linux/arm64)

   Place both files in build/source/ before building.

3. Optional custom transform/code package artifacts: place custom .jar and/or .js files under build/source/code-packages/. During build, these files are baked into /opt/faircom/server/packages, and startup logs print how many custom package files were found.

   Example:

   build/source/code-packages/
     decode_modbus_sim.js
     decode_mixing_tank.js
     your-java-transform.jar


   Copy

The image includes a Java runtime (openjdk-21-jre-headless) so Java-based package execution dependencies are available by default.

⁠Build and Push

Builds for linux/amd64 and linux/arm64, pushes both the versioned tag and latest to Docker Hub, and updates the Docker Hub overview in one step:

cd build/docker
./build-and-push.sh faircomteam/edge

This auto-detects the version from the tarball filename and pushes two tags, e.g.:

• faircomteam/edge:5.1.0.84.260213
• faircomteam/edge:latest

To also run Docker Scout vulnerability scan after push:

./build-and-push.sh faircomteam/edge --scout

⁠Local Build

cd build/docker
./build-local.sh faircomteam/edge latest

⁠Update Docker Hub Overview Only

cd build/docker
./build-and-push.sh faircomteam/edge --readme-only

⁠Support

• Docker Hub: https://hub.docker.com/r/faircomteam/edge⁠
• FairCom Documentation: https://docs.faircom.com⁠

⁠License

FairCom Edge is commercial software. This image packages FairCom Edge v5.1.0.84.

This image ships with an evaluation license (3-hour runtime limit). To remove the limit, bind-mount a production license file to /opt/faircom/server/ctsrvr.lic.

By downloading or using this image you agree to the FairCom Edge Developer License Agreement⁠.
