⁠SMS Gateway

This REST API allow you to send and receive SMS using gammu-smsd.

A 2.0 swagger documentation is provided at the root URL.

All routes can be protected by an authentication methode (Basic, Bearer).

⁠Table of Contents

⁠Requirements

This project require a SQL database (mySQL, MariaDB, ...).

A device supported by Gammu library⁠

A sim card to send and received SMS.

⁠Installation (docker-compose)

Create a folder into the host for persistant data (SQL data)

$ mkdir -p /opt/mariadb

Create docker-complose.yml file then modify or add environment variables if necessary

version: '3'
services:
  db:
    image: mariadb:11.4-ubi
    container_name: sms-gateway_db
    restart: always
    command: --wait_timeout=28800 --interactive_timeout=28800
    volumes:
      - /opt/mariadb:/var/lib/mysql
    environment:
      - MYSQL_ROOT_PASSWORD=UP5yeFxRcvtMBzjdfNmT6p
      - MYSQL_USER=sms-gateway
      - MYSQL_PASSWORD=Bpj7hXNCextgnzSWckFybV
      - MYSQL_DATABASE=smsd
    healthcheck:
      test: ["CMD", "healthcheck.sh", "--connect", "--innodb_initialized"]
      start_period: 15s
      interval: 15s
      timeout: 5s
      retries: 5
  backend:
    image: fizcko/sms-gateway:latest
    container_name: sms-gateway_server
    restart: always
    ports:
      - 5000:5000
    devices:
      - "/dev/ttyUSB2:/dev/phone"
    depends_on:
      db:
        condition: service_healthy
    environment:
      - MYSQL_HOST=db
      - MYSQL_USER=sms-gateway
      - MYSQL_PASSWORD=Bpj7hXNCextgnzSWckFybV
      - MYSQL_DATABASE=smsd
      - GAMMU_DEVICE=/dev/phone

⁠Run containers

$ docker-compose up -d

⁠Environment Variables

⁠SERVER_IP
default value   : "0.0.0.0"
description     : Bind to a specific interface
⁠SERVER_PORT
default value   : "5000"
description     : Define server port for backend API
⁠GAMMU_SMSD_CONF
default value   : "/etc/gammu-smsdrc"
description     : Set path of the configuration file for gammu-smsd. This file is dynamically generated at container startup
⁠GAMMU_DEVICE
default value   : "/dev/ttyUSB0"
description     : Path of the modem device mounted into the container
more            : https://wammu.eu/docs/manual/config/index.html#option-Device
⁠GAMMU_DEVICE_CONNECTION
default value   : "at"
description     : Protocol which will be used to talk to your device
more            : https://wammu.eu/docs/manual/config/index.html#option-Connection
⁠GAMMU_PIN
default value   : "1234"
description     : PIN for SIM card. If no pin on the SIM card leave default value
more            : https://wammu.eu/docs/manual/smsd/config.html#option-PIN
⁠GAMMU_DEBUG_LEVEL
default value   : "0"
description     : Log level for gammu-smsd
more            : https://wammu.eu/docs/manual/smsd/config.html#option-DebugLevel
⁠MYSQL_HOST
default value   : "localhost"
description     : Database server address
⁠MYSQL_USER
default value   : "root"
description     : User name used for connection to a database
⁠MYSQL_PASSWORD
default value   : "toor"
description     : Password used for connection to a database
⁠MYSQL_DATABASE
default value   : "smsd"
description     : Name of database dedicated for gammu-smsd
⁠JWT_SECRET
default value   : "Change-this-secret-phrase"
description     : The secret key needed for symmetric based signing algorithms
⁠JWT_ALGORITHM
default value   : "HS256"
description     : Which algorithm to sign the JWT with
more            : https://pyjwt.readthedocs.io/en/latest/algorithms.html
⁠JWT_ACCESS_TOKEN_EXPIRES
default value   : "900"
description     : How long (in ms) an access token should live before it expires. Can be set to 0 to disable expiration.
⁠API_SECURITY
default value   : "None"
allowed values  : "None" | "Bearer" | "Basic"
description     : Select the authentication methode for the routes of the Rest API
⁠API_USERNAME
default value   : "admin"
description     : User name used for connection to the rest API
⁠API_PASSWORD
default value   : "admin"
description     : Password used for connection to the rest API

⁠My setup

Raspberry Pi 4 Model B⁠

Quectel EC25 Mini PCle 4G/LTE Module⁠

Raspberry Pi interface bridge⁠

LTE Antenna⁠

⁠Screenshots

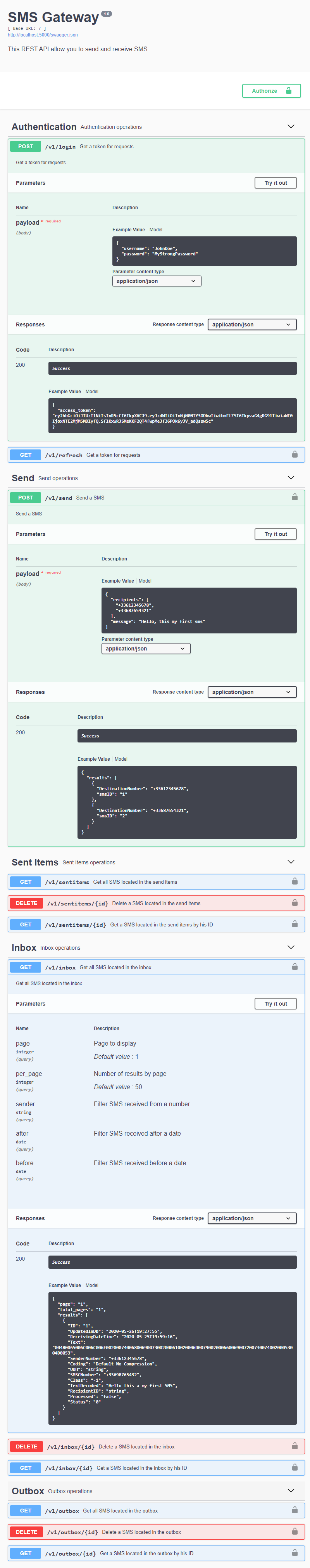

Swagger
