⁠NetMedEx v1.10.1: AI-Powered Biomedical Knowledge Discovery 🧬✨

NetMedEx is an AI-driven platform that transforms biomedical abstracts from PubTator3 into interactive, actionable knowledge graphs. It bridges the gap between structured networks and unstructured text using a Hybrid Retrieval-Augmented Generation (Hybrid RAG) engine powered by graph traversal and semantic vector search.

⁠🌟 Why NetMedEx?

While other tools simply list entities, NetMedEx interprets the links. It provides the scaffolding for discovery, allowing researchers to navigate the complex landscape of genes, diseases, chemicals, and species with AI as their co-pilot.

⁠🚀 Core Capabilities

• 🧠 Smart 2-Hop Graph RAG: Discovers latent mechanistic chains (A → B → C) scored by Hybrid Scoring 2.0 — combining topological NPMI, semantic confidence, and query relevance.
• 🕸️ Interactive Visualization: Explore co-mention and semantic networks with real-time layout adjustments, community detection, and sub-network selection.
• ⚡ Semantic Extraction: Automatically identifies relationship types (e.g., inhibits, treats, activates) with calibrated confidence scores and direct evidence sentences.
• 🌐 Universal Translation: Search and chat in English, Traditional Chinese, Japanese, or Korean. AI handles the translation to optimized PubTator syntax.
• 🐭 Species Differentiation: Clearly distinguishes human clinical findings from animal/cell-line model results in every AI response.
• 💾 Full Session Portability: Export your entire research state as a Graph File (.pkl) and restore it instantly — no re-analysis required.

⁠🆕 What's New in v1.10.1

• No More Empty Chat Replies on GPT-5 Models: complex questions no longer use up the reply budget on reasoning and return a blank answer.
• Steadier Topic Summaries on Large Graphs: finer topic clusters can be used so unrelated topics are not merged.

⁠Previous: v1.10.0

• Recognises What PubTator3 Misses: Non-coding RNAs (mature miRNA strands, circRNAs, lncRNAs), primary and immune cell types (macrophage states, regulatory T cells, stem cells, exosomes) and organelles (mitochondria, ER, lysosomes) now become graph nodes, so findings about them are no longer lost.
• Cleaner RNA Recognition: ordinary words like "circulating" and phrases like "circRNA-miRNA-mRNA" are no longer mistaken for circRNAs.

⁠Previous: v1.9.0

• Corpus-Scale Graph Building: Build a graph from tens of thousands of articles — add concepts PubTator3 does not annotate (extracellular vesicles, stem cells) with an entity dictionary, merge one concept's many identifiers (human/mouse/rat genes, GO/KEGG/MeSH duplicates) into a single node, and run semantic extraction through the OpenAI Batch API at half price.
• Chat Starts in Seconds: The abstract index can be kept on disk instead of being rebuilt on every start, and restored sessions reuse it.
• Clearer Graphs: Nodes are labelled with the wording most of their articles use, the edge cutoff counts supporting papers, and entity matching no longer fires on short names inside unrelated words.

⁠Previous: v1.8.1

• Suggested Questions Work Reliably: Clicking a suggested question could reload the page and drop you back on the Search panel when the model wrote the question in a numbered, non-English format. It now fills the chat box as intended.

⁠Previous: v1.8.0

• Explore Large Knowledge Graphs: Open a graph built from tens of thousands of articles directly from the server, start from its core entities, and grow the view step by step — connect any entity you search to the core entities through its best few-hop paths, or expand a node's strongest neighbours (with Undo).
• More Reliable Chat: Fixed "Graph session data not found" when starting a chat, and a crash on graphs with more than ~5,400 nodes.
• Richer Relation Extraction on OpenAI Models: The first extraction pass now returns all relations per article instead of just one (about 13 per article instead of 7, at lower cost).

⁠Previous: v1.7.3

• Follow-ups Better Remember What You Were Just Discussing: A follow-up question already re-searches the full index fresh each time — it now also gives a ranking boost to the papers your previous reply cited, so a still-relevant one can resurface instead of relying only on the model's memory of the conversation text.
• Better Article-Fetch Defaults: "Max Articles" and "Sort" defaulted to 30 articles / Recency, which could cap a broad search to only the 30 newest matches — sometimes missing the specific mechanism a question asked about entirely. Now defaults to 50 articles / Relevance.

⁠Previous: v1.7.2

• More Reliable Recovery After a Server Restart: If the server restarted while a chat was open, reopening it could sometimes fail with "Session expired" even though the underlying data was fine — two near-simultaneous requests to rebuild the same session could corrupt each other. Only one rebuild runs at a time now.

⁠Previous: v1.7.1

• Silent Translation Failures Are Now Visible: Asking a question in Chinese, Japanese, or Korean translates it to English before retrieval runs. If that translation step failed, search used to quietly fall back to the original-language text with no visible sign anything was wrong — measured impact: retrieval quality roughly halves when this happens. The answer now carries a caveat when it does.

⁠Previous: v1.7.0

• Hybrid Sparse + Dense Retrieval: Asking about one specific symbol (miR-155, EGFR C797S) used to fail — the embedding knows a text is "about microRNAs" but not which one. Chat now fuses BM25 exact-term matching with vector search, and recognises entity name variants (miR-155 / miRNA-155 / microRNA-155). Measured on a real 200-abstract corpus: precision@8 rose from 0.19 to 0.84, recall@8 from 0.11 to 0.64.
• Named Entities Resolve by Alias: A node's display name is whichever form the source paper used, so the standard form you type often existed only as an alias and matched nothing. Aliases are now indexed.
• A Named miRNA Is No Longer Read as the Whole Family: Asking about "miRNA-155" returned every miRNA in the network (~120 of them); it now returns the one you asked about, while genuinely generic questions still expand as before.

⁠Previous: v1.6.0

• Strict Citation Grounding for Follow-ups (optional): A new toggle makes follow-up questions try to answer using only the PMIDs your previous reply already cited first, only widening to the full index when that's genuinely insufficient — and explicitly discloses any newly-cited PMID when it does. Off by default.

⁠Previous: v1.5.22

• "Which Entities Are Related to X" Now Triggers the Full List: A natural phrasing like "which miRNAs are related to X" (or its Chinese equivalent) previously fell through to the normal reasoning path instead of the deterministic full-list response, surfacing only a handful of entities instead of every one in the graph.

⁠Previous: v1.5.21

• Query Translation Protects More Named Biological Families: Beyond miRNA/lncRNA, AI Search now also keeps interleukin/cytokine, chemokine, circRNA, and similar narrow biological families from being silently dropped as "generic" during query simplification.

⁠Previous: v1.5.20

• lncRNA Entities Get the Same Fix as miRNA: The v1.5.19 category-matching fix now also covers long non-coding RNAs (LINC*, SNHG*, -AS antisense genes, plus well-known named lncRNAs like MALAT1/H19/HOTAIR). Live-verified: Chat's answer now names specific lncRNAs with real citations instead of omitting them.

⁠Previous: v1.5.19

• Specific miRNAs (and Other Category-Matched Entities) No Longer Silently Dropped from Chat's Answer: A query naming a generic category ("microRNA") only resolves to a specific graph entity through category expansion, not literal name match -- so that entity's real, evidenced edges were getting outranked by generic hub-to-hub edges before ever reaching the answer, even when the graph itself had exactly the evidence needed. Live-verified: Chat's answer now cites the specific miRNA directly instead of a vague, unsupported guess.

⁠Previous: v1.5.18

• Entity-Listing Chat Answers No Longer Overclaim Completeness: Asking Chat to "list all miRNAs linked to X" used to always say the result was "a complete list." For networks built with Semantic Analysis or Relation-Only edges, entities that were never assigned an extracted relationship are removed as isolated nodes, so the list could genuinely be incomplete — Chat now says so in that case, while co-occurrence-built networks (which have no such gap) keep the original wording.

⁠Previous: v1.5.17

• Query Entities No Longer Missing When Built with Semantic Analysis: A specific miRNA (or other entity you searched for) could be entirely absent from a network built with Semantic Analysis (LLM), because that mode only extracts a handful of "headline" relationships per article rather than an edge for every mentioned entity. Query-relevant entities left without any edge now get a fallback co-mention link so they still appear, shown with a distinct dashed style.

⁠Previous: v1.5.16

• Low-Frequency Query Entities No Longer Vanish from the Graph: A specific miRNA (or any other entity you searched for) mentioned in only 1-2 articles could get silently dropped from a large network, crowded out by dominant nodes appearing in dozens of articles. The graph's automatic rendering safety caps now give query-relevant nodes/edges first claim on the display budget, so they survive even at low frequency.

⁠Previous: v1.5.15

• Model Dropdowns Now Mirror Your Main LLM by Default: Chat Model Override and Verifier Provider now show your main LLM's actual model instead of a bare "Custom..." placeholder when left at "Same as main provider" -- no more clicking Refresh just to see what will actually be used.

⁠Previous: v1.5.14

• "Show Communities" Toggle Explains Itself: When your current network only has one detectable community, the toggle now tells you instead of silently doing nothing.
• Restored Missing Edge Colors: Fixed a duplicate stylesheet definition that had been silently discarding green/red edge coloring (activating vs. inhibiting relations) and dashed node-type edges since a past refactor.

⁠Previous: v1.5.13

• Fixed "Same as Main Provider" Model Fetch for .env-Configured Keys: Refreshing available models for Chat Model Override / Verifier Provider now correctly finds your key even if it's set via a server environment variable rather than typed into the browser.

⁠Previous: v1.5.12

• Faster Local-Model Network Building: Raised the default concurrency for local (Ollama) semantic analysis from 1 to 2 -- a live-measured ~19% speedup with no downside on typical single-GPU setups.

⁠Previous: v1.5.11

• Active LLM Banner Now Catches Unsaved Model Changes Too: Previously only a provider change triggered the "🟡 pending — click Submit" warning; picking a different model without submitting looked identical to it already being active. Fixed.

⁠Previous: v1.5.10

• Close Button at the Bottom of Advanced Settings: No more scrolling back to the top to close the panel after configuring settings further down.

⁠Previous: v1.5.9

• Simpler, More Reliable Provider Overrides: Verifier Provider and Chat Model Override now share one lightweight design — pick a model with one click, and only enter a new API key if you actually chose a different provider. Also fixes Verifier Provider silently failing when a different provider's key wasn't already set as a server environment variable.

⁠Previous: v1.5.8

• Chat Model Override Dropdown: The Chat Model Override field now fetches and lists real available models from your chosen provider via a "🔄 Refresh available models" button, instead of requiring you to type an exact model name.

⁠Previous: v1.5.7

• Chat Now Sees Your Whole Network, Not Just the Top 50 Abstracts: Removed a silent cap that indexed only the top 50 (by citation weight) of your built network's abstracts into Chat's RAG when no sub-network was manually selected — the rest were unreachable for the entire conversation. Chat now indexes everything you built.

⁠Previous: v1.5.6

• Chat Model Override, Now in the Web UI Too: Advanced Settings gains an optional "Chat Model Override" — build your network with your regular provider, then answer questions with a different, stronger model. Off by default; existing behavior is unchanged.

⁠Previous: v1.5.5

• Split Model for Graph Building vs. Chat: The FastAPI bridge now accepts an optional separate model for Chat generation (chat_provider/chat_model/etc.), distinct from the model used to build the network. Build cheaply per-article, then get flagship-quality answers per question — without changing anything if you don't set these.

⁠Previous: v1.5.4

• Fixed a Silent Extraction Gap Affecting Newer/Reasoning Models: A fallback prompt used when semantic extraction's first pass comes back empty was missing its "evidence" field, so relations recovered through it could never be cited as claim-safe. Models that trigger this fallback more often (found with gpt-5.6) were unfairly penalized. Live-verified fix: a session that previously abandoned causal-mechanism reasoning entirely now produces a complete, correctly-cited answer for the same question.

⁠Previous: v1.5.3

• Better Layer 3 Evidence Recovery: High-confidence directional edges were being discarded purely because the query happened to anchor on the "wrong" end of the edge. Single-hop edges are now correctly kept and stated in their true direction.
• Provider-Switch Model Bug Fixed: Switching LLM providers without explicitly specifying a model no longer risks sending the previous provider's model name to the new one.
• Realistic Local-Model Time Estimates: The semantic-analysis progress message now gives a much wider, honest time estimate for large local models.

⁠Previous: v1.5.2

• Cross-Literature Conflict Detection: When two PMIDs report opposite regulatory direction for the same edge (e.g. one says "inhibits", another "activates"), Chat's Layer 3 now surfaces both sides as an explicit, unresolved Literature Conflict instead of silently picking one.
• Sharper Layer 3 Causal-Mechanism Reasoning: Raised the local-model (Ollama) chat token budget so Layer 3's evidence table, Weakest Link, Testable Prediction, and Suggested Validation fields are no longer truncated mid-response.
• In-Chat Rebuild Nudge: When a turn has no directional edges to reason over and the network wasn't already built with Semantic Analysis, Chat now suggests rebuilding with that edge method directly in its reply.
• Faster Failure When No LLM Is Configured: Selecting Semantic Analysis without a configured LLM key now fails immediately instead of after the full literature search completes.
• Semantic Analysis Is Now the Default Edge Method: New networks are built with Semantic Analysis (LLM) by default instead of Co-occurrence, so Layer 3's causal-mechanism reasoning has directional evidence to work with out of the box. Co-occurrence is still available (and the right pick before an API key is configured) — its symmetric-only edges leave Layer 3 with nothing to reason over.

⁠Previous: v1.5.1

• Type-Constrained Biomedical Acronym & MeSH Standardisation: Integrated BIOMEDICAL_ACRONYM_MAP and MeSH CUI lookup into normalize_knowledge_graph to expand common medical acronyms (e.g., RA in Disease ➔ rheumatoid arthritis, RA in Chemical ➔ retinoic acid) while protecting Gene, Mutation, and SNP nodes.
• Cytoscape Canvas Height Stability: Implemented cy_container_visibility to enforce container height (800px), preventing inline style overrides from collapsing the Cytoscape graph canvas to 0px during layout transitions.
• Diskcache WAL Checkpoint Safeguard: Added SQLite WAL checkpoint (PRAGMA wal_checkpoint(PASSIVE)) prior to graph restoration callbacks, preventing SQLite WAL accumulation from blocking progress updates.
• LLM Error Log Sanitisation & UI Animations: Applied error message sanitisation before logging LLM exceptions to prevent API key exposure in log outputs, and enhanced progress bars with staged pacing delays.

⁠Previous: v1.5.0

• FastAPI Bridge Memory Reclamation & TTL: Added automated LRU session eviction and time-based expiration (default 2 hours) to _SessionStore, preventing memory accumulation during programmatic API and batch search runs.
• GraphBuilder Lifecycle State Protection: Locked graph builder mutation states (_is_built) to prevent destructive re-pruning on duplicate build() calls and guard against weight corruption from post-build additions.
• Dependency & Environment Hardening: Added explicit dependency verification for optional semantic extractors, graceful context-length exceeded error translation in Chat, and $10^{-9}$ floating-point tolerance in NPMI calculations.

⁠Previous: v1.4.0

• Relation-Direction Verification (optional 2nd LLM): New opt-in toggle in Advanced Settings runs a second verification pass over directional semantic edges (e.g. inhibits, upregulates), checking each against its supporting evidence quote and downgrading unconfirmed directions to a neutral associated_with instead of dropping them. Choose a verifier provider independent from your main LLM for the best odds of catching an extraction error.
• Numeric-Artifact Node Filter: Defensively rejects graph nodes whose display name is purely numeric (an occasional PubTator3 upstream annotation artifact).

⁠Previous: v1.3.6

• Deterministic ChromaDB Retrieval: Stabilized vector retrieval result ordering for reproducible RAG outputs when candidate scores tie.

⁠Previous: v1.3.5

• Deterministic 2-Hop Traversal: Stabilized 2-hop path traversal ordering for reproducible graph reasoning results.

⁠Previous: v1.3.4

• Version Alignment: Corrected remaining version strings across README.md, DEPLOYMENT.md, DOCKERHUB_OVERVIEW.md, and the web application sidebar UI to align with release v1.3.4.

⁠Previous: v1.3.3

• LLM Provider UI & Local Models: Support for local model configuration and provider UI improvements with session isolation.
• Offline Cache Support: Pre-downloads tiktoken BPE cache in the builder stage to support air-gapped container environments.
• Defensive Safeguards: Normalization toggle is automatically disabled when no LLM is configured.
• Config & Data Cleanups: Redacted internal development variables, expanded .env.example to templates for all 7 providers, and excluded Pediatric CNS data from GitHub and Docker builds.

⁠Previous: v1.3.2

• Search Nodes @Type Syntax: Type @Gene, @Disease, @Gene:gut, or keyword, @Gene in the Search Nodes field to highlight, filter, or path-search by biological entity type. Top-20 anchor selection uses PMID literature count as the importance criterion.

• Chat Download History Fix: Download now exports the full unbounded message log, matching what the user sees in the UI chat panel.

• Search Nodes Tooltip: Improved info tooltip with @Type usage examples, anchor/path-node color legend, and silent-skip behaviour note.

• WAL Hang Fix: Resolves Chat panel permanently stuck at "Preparing abstracts..." — diskcache SQLite WAL is now checkpointed before each analysis run, preventing write-blocking from accumulated background callback writes.

• Adaptive Chat Response Modes: The 5-layer system prompt now selects response format based on question type: Compact Mode for simple factual queries, Layer 2 skip conditions to avoid empty structured blocks, and adaptive Layer 5 question count (3 for broad analyses, 1 for focused follow-ups, none for Compact Mode).

⁠Previous: v1.3.0

• Anthropic API Integration: Full native support for Anthropic Claude models (e.g., claude-3-5-sonnet, claude-3-opus) as a core LLM provider in both the web application (Advanced Settings UI) and CLI/API interfaces.
• Advanced LLM Settings & Customization: Rewrote LLM initialization and configuration parsing (llm.py and advanced_settings.py) to support multi-provider environments, dynamic testing of connection status for Anthropic/OpenAI/Gemini/Groq/NVIDIA NIM, and direct environment configuration saving to .env.
• CJK / Universal Translation Robustness: Strict universal language requirements inside prompts for non-English users, enforcing CJK output generation for all headers, labels, and structured segments.
• Token Usage & Cost Analysis: Added complete documentation for cost calculation per pipeline stage (docs/token_cost.md), including strategies for cost minimization using lighter models or co-occurrence graphs.
• Biomedical RAG Platform Comparisons: Published comparative analysis documentation against MRTKG (docs/NetMedEx_vs_MRTKG_comparison.md) describing architectural advantages.

⁠🛠️ Quick Start

Launch the interactive dashboard on localhost:8050:

⁠Method A: Docker Desktop (GUI)

1. Search for lsbnb/netmedex in the top search bar of Docker Desktop and click Pull.
2. Go to the Images tab, locate lsbnb/netmedex:latest, and click Run.
3. Expand Optional settings:
   • Set Host port to 8050 (maps host port 8050 to container port 8050/tcp).
   • (Optional) Set Container name to NetMedEx.
4. Click Run, then open http://localhost:8050⁠ in your browser.

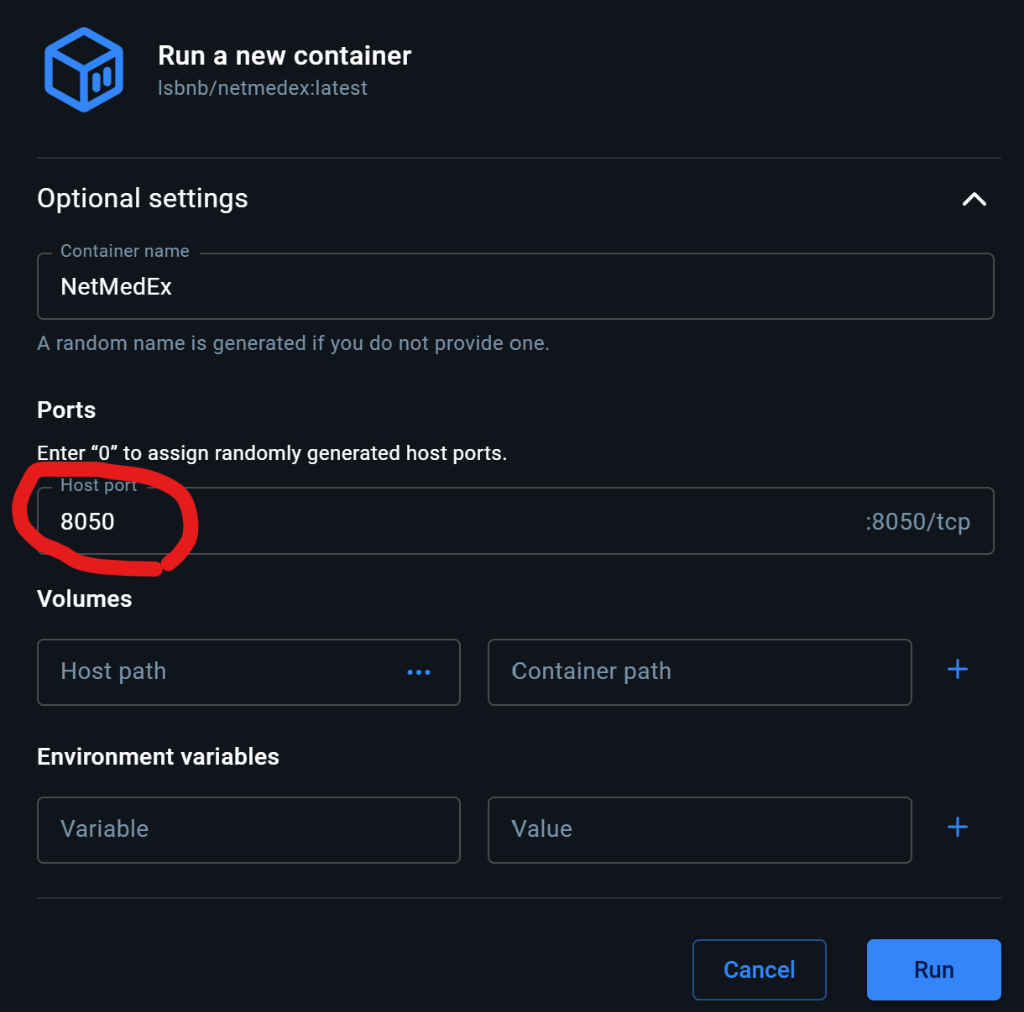

Configuring Host port (8050) in Docker Desktop Optional Settings.

⁠Method B: Terminal Command Line

docker run -p 8050:8050 --rm lsbnb/netmedex

⁠🔓 Unlock Full AI Power

Pass your LLM API key to enable Semantic Analysis and Hybrid RAG Chat:

# OpenAI
docker run -p 8050:8050 --rm \
  -e OPENAI_API_KEY='sk-...' \
  lsbnb/netmedex

# Google Gemini
docker run -p 8050:8050 --rm \
  -e LLM_PROVIDER=google \
  -e GEMINI_API_KEY='AIza...' \
  lsbnb/netmedex

# Local LLM (Ollama)
docker run -p 8050:8050 --rm \
  -e LLM_PROVIDER=local \
  -e LOCAL_LLM_BASE_URL='http://host.docker.internal:11434/v1' \
  -e LOCAL_LLM_MODEL='llama3' \
  lsbnb/netmedex

# NVIDIA NIM (Cloud)
docker run -p 8050:8050 --rm \
  -e LLM_PROVIDER=nvidia \
  -e NVIDIA_API_KEY='nvapi-...' \
  -e NVIDIA_NIM_MODEL='meta/llama-3.1-70b-instruct' \
  lsbnb/netmedex

⁠📂 Persist Session Data

Mount a local directory to keep your graph sessions across container restarts:

docker run -p 8050:8050 --rm \
  -e OPENAI_API_KEY='sk-...' \
  -v $(pwd)/netmedex-data:/app/data \
  lsbnb/netmedex
