⁠The gem5 container

The simulator side of the FaMAF CVA6 Project: gem5 v25.0.0.1 built three times, the MinorCPU configuration matched to CVA6, the calibration benchmarks, the run drivers and the MinorFlow viewer, in one image. Everything lives under /gem5, which is the working directory of every shell the image starts.

⁠Quick start

docker pull manuel313/famaf_gem5
docker run -dit --name gem5 -p 8000:8000 --shm-size 2g manuel313/famaf_gem5 bash
docker exec -it gem5 bash

Then, inside the container:

python3 scripts/run_gem5.py gem5_configs/config/gem5_config_CVA6_patch.py benchmarks/config/store_fwd.S --variant patch --no-trace
python3 scripts/serve_MinorFlow.py   # then open http://localhost:8000/MinorFlow/MinorFlow.html

The viewer's Load sample button works straight away: the image carries a full sample of every one of its seven programs, made while it was built. With the repository cloned, python3 scripts/make_containers.py gem5 --pull does the same with limits sized to your machine, and scripts/docker_sync.py moves files between the checkout and the container.

⁠Tags

⁠Its counterpart

manuel313/famaf_cva6⁠ runs the same benchmarks on the CVA6 RTL this model is matched to. The project, its documentation and the recipe for this image are at https://github.com/FaMAF-CVA6-Project/CVA6⁠, and the comparison viewer that puts the two side by side, FlowCompare, is there too.

Everything below describes what is inside the container, so every path is a container path.

⁠What is in here

The bare-metal toolchain is riscv64-unknown-elf-gcc 13.2.0, and the benchmarks are built for the extension set the CVA6 target implements, rv64gc_zba_zbb_zbs_zbc_zbkb_zbkx_zkne_zknd_zknh with the lp64d ABI.

⁠Run one benchmark

python3 scripts/run_gem5.py gem5_config_CVA6_patch.py store_fwd.S --variant patch

A bare name is enough for both arguments. Configurations are looked up in gem5_configs/config/, gem5_configs/viewer/ and gem5_configs/CARLA2026/, and programs in benchmarks/config/ and benchmarks/viewer/, so the full path is only needed for a file kept somewhere else.

What it prints is a metrics table with three columns: OFFICIAL is what gem5's counters read, NET subtracts the fixed instrumentation overhead of the suite the program belongs to, and NET (CVA6) is the same number under the filter the hardware side applies, which is what the two sides are compared on.

Output lands under results/: gem5's own output in results/m5out/ and the files worth keeping in results/run/.

⁠The other drivers

Every one of them answers --help. clean_gem5_runs.py takes --dry-run to list without deleting, check_patch_parity.py -n, measure_gem5_overhead.py -n and patch_gem5.py build -n print the commands without running them, run_all_gem5_benchmarks.py takes --dry-run, and both sweeps take --dry-run to print the plan without running it.

⁠The three builds and the patch

MinorCPU_CVA6.patch is what turns gem5's MinorCPU into the matched core. It is applied in the tree, so src/ here is patched and build/RISCV was made before it went in. gem5_configs/config/MinorCPU_CVA6.patch is the copy to read and to edit.

python3 scripts/patch_gem5.py status     # applied or not, and which builds exist
python3 scripts/patch_gem5.py revert     # take it out of the tree
python3 scripts/patch_gem5.py create     # turn the current tree into the patch file
python3 scripts/patch_gem5.py build      # rebuild, asking PATCH or EXP

create diffs src/ against .pristine_src.tar.xz, so the image needs no git history for it, and a new file is picked up without a git add. It writes git's own patch format, one file at a time in git's order, and leaves out Python caches, editor swap files and the .orig and .rej a failed patch leaves.

An edited patch belongs in build/RISCV_EXP until it is worth adopting, because build/RISCV_PATCH is the reference every TEST is measured against. run_gem5.py compares the patch's hash against .built_patch_sha1 and warns when the patch was edited but not rebuilt, since that run does not carry the patch being read. Separately, it refuses a binary that does not match --variant, which --skip-build-check overrides.

check_patch_parity.py is the guard for the one failure an ablation cannot catch: a patch that changes behaviour even with every switch off. It runs the stock build on the stock configuration and the patched build with the mechanisms disabled, and the two must agree.

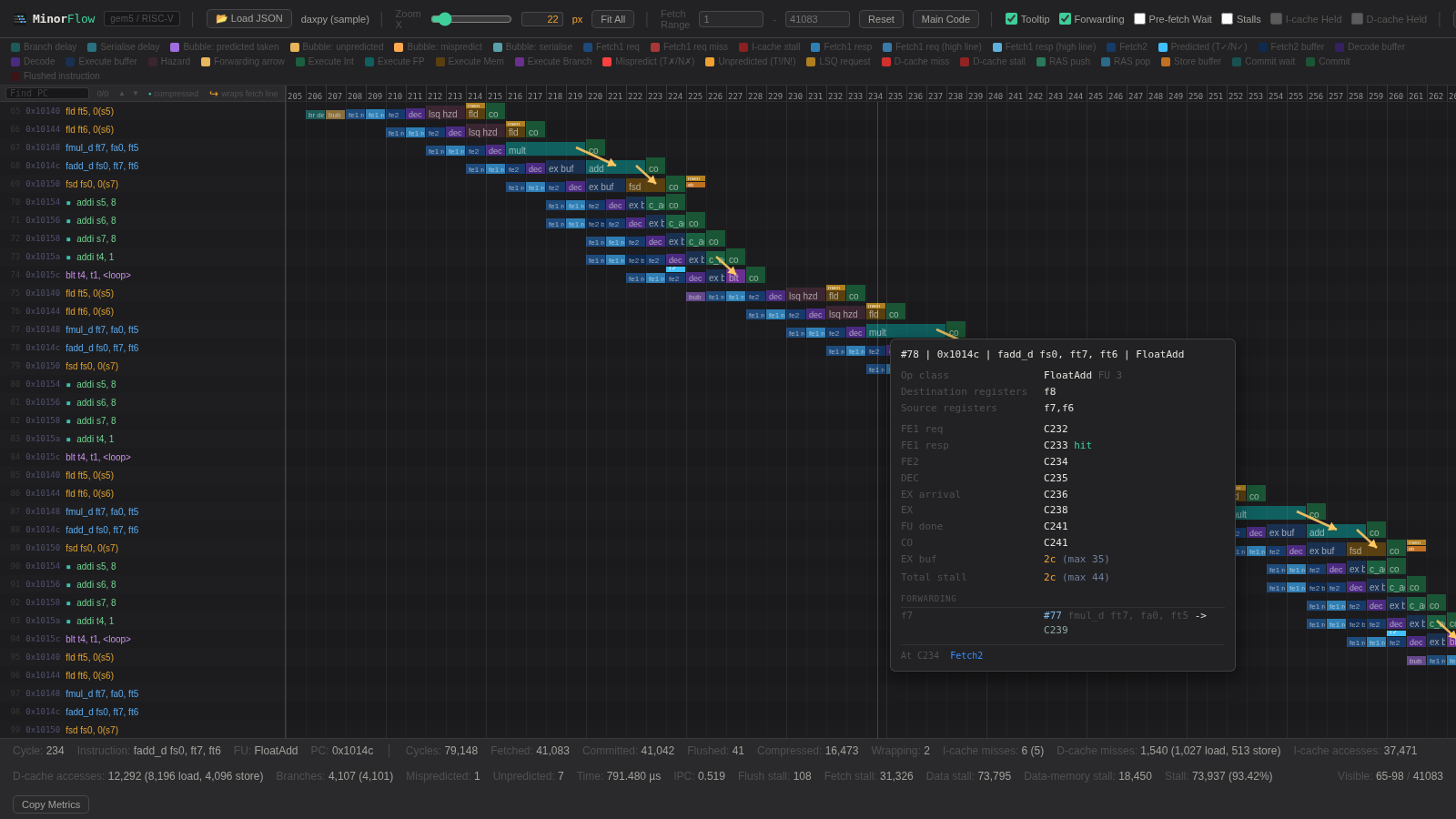

⁠Use the viewer

python3 scripts/serve_MinorFlow.py

It listens on port 8000 inside the container, which make_containers.py publishes as 8000 on the host, so open http://localhost:8000/MinorFlow/MinorFlow.html there. The CVA6 container takes 8001, so both can serve at the same time.

The viewer loads the JSON the tracer makes from a gem5 debug trace:

python3 MinorFlow/MinorFlow_tracer.py results/run/daxpy_trace.txt -o results/run/daxpy.json

The page opens a JSON from the host's disk, dropped onto it or chosen with Load JSON, so either copy the JSON out to the host, with docker cp or the fork's scripts/docker_sync.py pull, or make a sample of it inside the container, which the served page then offers by name:

python3 scripts/make_MinorFlow_sample.py results/run/daxpy.json -n 0

-n 0 keeps every record, and the script refuses a JSON of more than the 500,000 records the page renders at once. Without -n it keeps the first 3,000. The sample lands in MinorFlow/tests/ as daxpy.sample.js, listed in MinorFlow/tests/samples.js, and the page scripts/serve_MinorFlow.py serves offers it in its sample picker.

A trace has to be captured with the debug flags the tracer needs. With --strict the tracer exits with 3 on a degraded trace: one missing a family of those lines, the L1 cache or LSQ lines for instance, so a mechanism could not be observed at all, one cut part way through a line, or one that holds no instruction or no commit. metadata.degraded always names each one, whether or not --strict is passed. The viewer refuses a JSON whose metadata.schema_version is not 7 and asks for it to be regenerated, rather than drawing silent nulls.

MinorFlow/tests/ already holds a full sample of every program in benchmarks/viewer/, one per program and every record of its run, made while this image was built, so Load sample works before anything has been run here. The page offers only what tests/samples.js lists that its tracer wrote at schema 7, so a sample made later appears too once its .sample.js and the manifest are in MinorFlow/tests/. On the host, python3 scripts/docker_sync.py push gem5 replaces the folder with the checkout's own.

⁠Benchmarks and configurations

Each benchmark folder carries a one-line .overhead_suite file naming the overhead table its programs belong to, so the right fixed cost is subtracted wherever the folder is copied. benchmarks/config/ is the calibration set and benchmarks/viewer/ the set written while developing the viewer.

Each harness holds two tables: the calibration grid, which a plain sweep runs, and CACHE_TESTS beside it, seventeen entries varying only L1I and L1D size and associativity over more of the benchmark set, laid over the full production configuration in the patched harness and the stock baseline in the stock one. Their ids start at 201 and --configs cache is how to ask for them.

The configurations under gem5_configs/ are kept one folder per origin. gem5_config_CVA6.py is the matched configuration for a stock gem5 and gem5_config_CVA6_patch.py the one for the patched build. gem5_config_CVA6_testing.py and gem5_config_CVA6_patch_testing.py are their calibration harnesses, each a table of single-knob perturbations selected by a TEST number, and the sweep runs the patched one.

⁠Cleaning up

python3 scripts/clean_gem5_runs.py --dry-run    # list, delete nothing
python3 scripts/clean_gem5_runs.py              # list, then ask

It deletes results/m5out/, results/run/, results/batch/, results/sweep_gem5_config/, results/sweep_MinorFlow/, results/parity/ and every __pycache__ in the tree, including the ones scons leaves behind. It never touches build/, so the three builds survive.

⁠What is upstream and what is not

gem5 is the work of the gem5 developers and stays under its own terms, preserved in the image as LICENSE and COPYING, with its own README as README.gem5.md. MinorCPU_CVA6.patch is a set of changes to gem5's sources: the changes are this project's, and the files they produce remain gem5's under gem5's licence.

What this project adds is listed in LICENSE.FaMAF, which also carries the MIT terms it is offered under. CITATION.cff is how to cite the image.

⁠Built with

gem5 v25.0.0.1 at commit ddd4ae35, riscv64-unknown-elf-gcc 13.2.0, Python 3.12 on Ubuntu 24.04. The three builds are gem5.opt, which keeps assertions and the debug flags the traces depend on.
