⁠UFM Event Stream to FluentBit endpoint (EFS)

This plugin is used to extract UFM events from UFM syslog and stream it to a remote Fluentd⁠ destination. It also has the option to duplicate current UFM syslog messages and forward them to a remote syslog destination

⁠Overview

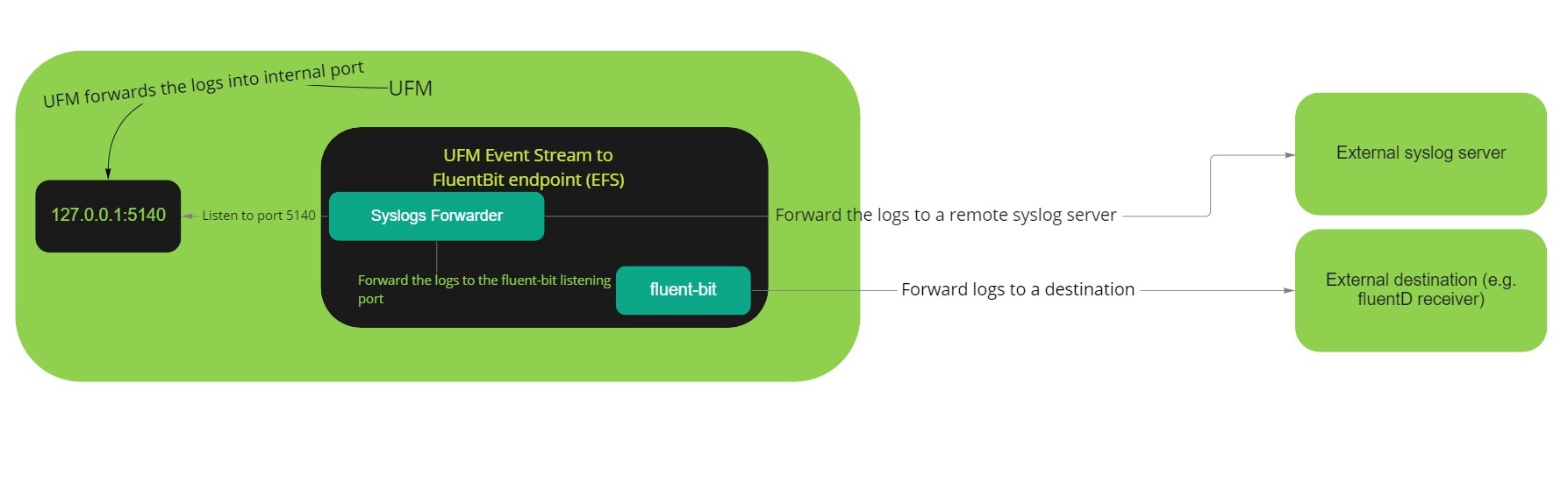

The UFM Enterprise product is Nvidia’s platform for IB fabric management. Through this platform, the various devices (switches, multi-chip systems, cables, etc.) are discovered, configured and the status of the entire fabric is reflected. As a fabric manager, it will be useful to collect the UFM Enterprise events/logs, stream them to the destination endpoint and monitor it. In order to do so, we present UFM Event Stream to FluentBit endpoint (EFS)

⁠Plugin Deployment

⁠To deploy the plugin on UFM-SDN Appliance:

• Login as admin

• Run

  enable

  config terminal

• Make sure that UFM is running

  show ufm status

• if UFM is down then run it

  ufm start

• Make sure docker is running

  no docker shutdown

• Load the latest plugin container

  • In case of HA, load the plugin on the standby node as well;
  • if your appliance is connected to the internet, you could simply run:

    docker pull mellanox/ufm-plugin-efs

  • if your appliance is not connected to the internet, you need to load the image offline
    • Use a machine that is connected to the internet to save the docker image

      docker save mellanox/ufm-plugin-efs:latest | gzip > ufm-plugin-efs.tar.gz

    • Move the file to scp shared location that is accessible to the appliance
    • Fetch the image to the appliance

      image fetch scp://user@hostname/path-to-file/ufm-plugin-efs.tar.gz

    • Load the image

      docker load ufm-plugin-efs.tar.gz

• Enable & start the plugin

  ufm plugin efs add

• Check that plugin is up and running with

  show ufm plugin

⁠To deploy the plugin on UFM Docker container:

• Load the latest plugin container

  • In case of HA, load the plugin on the standby node as well;
  • if your machine is connected to the internet, you could simply run:

    docker pull mellanox/ufm-plugin-efs

  • if your server is not connected to the internet, you need to load the image offline
    • Use a machine that is connected to the internet to save the docker image

      docker save mellanox/ufm-plugin-efs:latest | gzip > ufm-plugin-efs.tar.gz

    • Move the file to some shared location that is accessible to the UFM machine
    • Load the image to UFM machine

      docker load < /[some-shared-location]/ufm-plugin-efs.tar.gz

• Enable & start the plugin

  docker exec ufm /opt/ufm/scripts/manage_ufm_plugins.sh add -p efs

• Check that plugin is up and running with

  docker exec ufm /opt/ufm/scripts/manage_ufm_plugins.sh show

⁠To deploy the plugin with UFM Enterprise (SA or HA):

• Install the latest version of UFM.

• Load the latest plugin container

  • In case of HA, load the plugin on the standby node as well;
  • if your machine is connected to the internet, you could simply run:

    docker pull mellanox/ufm-plugin-efs

  • if your appliance is not connected to the internet, you need to load the image offline
    • Use a machine that is connected to the internet to save the docker image

      docker save mellanox/ufm-plugin-efs:latest | gzip > ufm-plugin-efs.tar.gz

    • Move the file to some shared location that is accessible to the UFM machine
    • Load the image to UFM machine

      docker load < /[some-shared-location]/ufm-plugin-efs.tar.gz

• To enable & start the plugin, run :

  /opt/ufm/scripts/manage_ufm_plugins.sh add -p efs

• Check that plugin is up and running with

  docker ps;

Log file efs.log is located in /opt/ufm/files/log on the host.

⁠Usage

⁠1.Configure the UFM syslog:

Enable the syslog on the UFM side using the following REST API:

METHOD: PUT

URL: _https://[HOST-IP]/ufmRest/app/syslog

Payload Example:

{
   "active": true,
   "destination": "127.0.0.1:5140",
   "level":"<severity>",
   "ufm_log":true,
   "events_log":true
}

cURL Example:

curl -XPUT 'https://10.209.36.68/ufmRest/app/syslog' \
  -k \
  -u admin:123456 \
  -H 'content-type: application/json' \
  -d '{"active": true,"level": "WARNING","ufm_log": true,"events_log": true,"destination": "127.0.0.1:5140"}'

• [severity] could be any of the following values: CRITICAL, ERROR, WARNING, INFO, or DEBUG.

⁠2.Configure the destination endpoint:

You can forward the events to any external destination you want; we will show an example how to configure the fluentD as a destination:

• Pull the Fluentd Docker⁠ by running:

  docker pull fluent/fluentd

• Run the Fluentd docker by running:

  docker run -ti --rm --network host -v /tmp/fluentd:/fluentd/etc fluentd -c /fluentd/etc/fluentd.conf

• We provide fluentd.conf⁠ as a fluentd configurations sample.

⁠3.Set the plugin configurations by the following API:

METHOD: PUT

URL: https://[HOST-IP]/ufmRest/plugin/efs/conf

Payload Example:

{
 "UFM-syslog-endpoint": {
     "host": "127.0.0.1",
     "port": 5140
 },
 "fluent-bit-endpoint": {
     "destination_host": "127.0.0.1",
     "destination_port": 24226,
     "enabled": true,
     "message_tag_name": "ufm_syslog",
     "source_port": 24227
 },
 "logs-config": {
     "log_file_backup_count": 5,
     "log_file_max_size": 10485760,
     "logs_file_name": "/log/efs.log",
     "logs_level": "INFO"
 },
 "streaming": {
     "enabled": false
 },
 "syslog-destination-endpoint": {
     "enabled": false,
     "host": "127.0.0.1",
     "port": 514
 }
}

cURL Example:

curl -XPUT 'https://10.209.36.68/ufmRest/plugin/efs/conf/' \
 -k \
 -u admin:123456 \
 -H 'Content-Type: application/json' \
 -d '{"streaming": {"enabled": true}, "syslog-destination-endpoint":{"enabled": true,"host": "10.209.36.67","port": 514}, "fluent-bit-endpoint": {"enabled": true,"destination_host": "10.209.36.67","destination_port": 24225}}'

• Updating the configurations while the streaming is running will restart all the running streaming services automatically and the new changes will take effect immediately

⁠Configuration Parameters Details:

⁠4.Get the plugin configurations by the following API:

METHOD: GET

URL: https://[HOST-IP]/ufmRest/plugin/efs/conf
