michdo93/ros-kinetic-pepper repository overview

⁠Docker

⁠Why Docker?

"With Docker, developers can build any app in any language using any toolchain. “Dockerized” apps are completely portable and can run anywhere - colleagues’ OS X and Windows laptops, QA servers running Ubuntu in the cloud, and production data center VMs running Red Hat.

Developers can get going quickly by starting with one of the 13,000+ apps available on Docker Hub. Docker manages and tracks changes and dependencies, making it easier for sysadmins to understand how the apps that developers build work. And with Docker Hub, developers can automate their build pipeline and share artifacts with collaborators through public or private repositories.

Docker helps developers build and ship higher-quality applications, faster." -- What is Docker

⁠How to pull the container

docker pull michdo93/ros-kinetic-pepper

⁠How to run a container

The container needs admin permissions because it uses systemd. So you have to run something like following:

docker run --net=host -d -it --name <container_name> --privileged -v /sys/fs/cgroup:/sys/fs/cgroup:ro <image_name>

As example:

docker run --net=host -d -it --name ros-kinetic-pepper --privileged -v /sys/fs/cgroup:/sys/fs/cgroup:ro ros-kinetic-pepper

If you want to run the container after your system is restarted, please add --restart=always. The argument --net=host will make the container use the ip address of the host system. This is needed if you want to run the roscore for public access which means that you can communicate with your robot(s).

⁠How to open a bash shell

(Please notice that ROS needs a bash shell).

docker exec -it <container_name> /bin/bash

Of coure you can open multiple bash shell's.

⁠How to save changes

Before shutting down your host system or stopping the docker container you should save changes you made in the container otherwise it will be lost.

docker commit <container_name> <image_name>:<tag>

As example:

docker commit ros-kinetic-pepper ros-kinetic-pepper:11/29/2021

⁠How to stop a container

You can stop a container with:

docker stop <container_name>

Please notice if you commited the container because of changes you should remove the old container before starting the new container. You can do that with:

docker rm <container_name>

⁠How to restart a container

docker restart <container_name>

Please notice that restart only works if the container is shut dowm but not removed!

⁠How to re-run a container

docker run --net=host -d -it --name <container_name> --privileged -v /sys/fs/cgroup:/sys/fs/cgroup:ro <image_name>

Maybe you want ro run another version of your image as example with commited changes:

docker run --net=host -d -it --name <container_name> --privileged -v /sys/fs/cgroup:/sys/fs/cgroup:ro <image_name>

⁠VNC Viewer

Instead of using tigervnc directly with a VNC viewer, please use a browser and the Web Interface of noVNC.

⁠noVNC

noVNC is both a HTML VNC client JavaScript library and an application built on top of that library. noVNC runs well in any modern browser including mobile browsers (iOS and Android).

⁠How to login

Go to https://<your_hostname_or_ip>:6901⁠.

Username: ubuntu Password: ubuntu

⁠How to use special keys

Click on the left panel on the A button and select one of the special keys.

⁠How to copy + paste

Click the clipboard icon on the left panel. Copy from the VNC desktop or paste to the VNC desktop using the textfield as clipboard for copy/paste.

⁠How to change the Resolution

Click on the settings icon on the left panel. Then change the scaling mode to locally scaling.

After that open a terminal window inside the noVNC desktop environment and run xrandr to see all posible resolution modes. In the next step you can change the resolution by running sudo xrandr --ouptut <display_name> --mode <favourite_resolution>.

⁠Visual Studio Code

You can run VS Code if you open a terminal in the noVNC desktop enviroment and run code. If you want to open a whole directory you can navigate to it and run:

cd <path/to/directory>
code .

or

code <path/to/directory>

⁠ROS

ROS Kinetic Kame is automatically started after system boot if you run this container on startup with --restart=always. If the container is started a systemd service will start the roscore so you do not have to execute roscore in a bash shell.

⁠ROS environment variables

You do not have to parse environment variables to the docker container by starting the container. The environment variables $ROS_DISTRO, $ROS_HOSTNAME, $ROS_MASTER_URI and $ROS_IP are set inside the /etc/environment file of the docker container. Optionally you have to change the $ROS_IP that the roscore ir ROS Master is in the same network as your robot(s).

You can check following:

echo "$(hostname -I | awk '{print $1;}')"
echo "$(hostname -I | awk '{print $2;}')"

Please make sure that you change the ROS_IP="$(hostname -I | awk '{print $2;}')" or ROS_IP="$(hostname -I | awk '{print $2;}')"line inside the/etc/environment` before running the roscore. Maybe you have to restart the roscore.service.

⁠roscore.service

The roscore.service is used to run the roscore.

You can start the roscore.service with:

sudo systemctl start roscore.service

It normally should be started on boot with sudo systemctl enable roscore.service.

You can check the status with:

sudo systemctl status roscore.service

You can stop the roscore.service with:

sudo systemctl stop roscore.service

If you want to disable the roscore.service you can run:

sudo systemctl disable roscore.service

You can restart the roscore.service with:

sudo systemctl restart roscore.service

Please notice that you also have to commit your docker file if you make changes to the settings of the roscore.service.

⁠roslaunch.service

The roslaunch.service is used to run (multiple) launch files by starting the docker container. Please change the /usr/sbin/roslaunch file for adding (multiple) launch files:

#!/bin/bash
source /home/ubuntu/catkin_ws/devel/setup.bash
source /etc/environment
export ROS_HOME=$(echo /home/ubuntu/.ros
# place your roslaunch command here! &
PID=$!
wait "$PID"

You can start the roslaunch.service with:

sudo systemctl start roslaunch.service

It normally should be started on boot with sudo systemctl enable roslaunch.service.

You can check the status with:

sudo systemctl status roslaunch.service

You can stop the roslaunch.service with:

sudo systemctl stop roslaunch.service

If you want to disable the roslaunch.service you can run:

sudo systemctl disable roslaunch.service

You can restart the roslaunch.service with:

sudo systemctl restart roslaunch.service

Please notice that you also have to commit your docker file if you make changes to the settings of the roslaunch.service.

⁠Pepper

⁠Starting Pepper packages

⁠C++ version

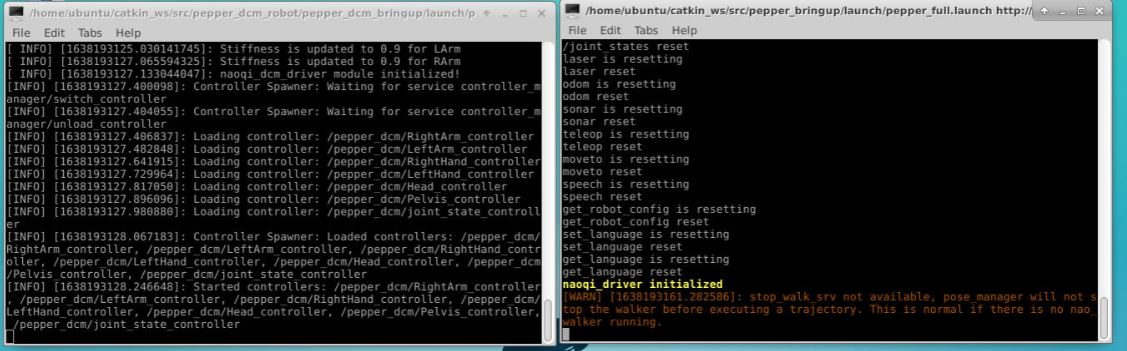

Now we are good to go! To bring-up Pepper with all actuators and sensors, we run:

Terminal 1:

roslaunch pepper_dcm_bringup pepper_bringup.launch robot_ip:=<yourRobotIP> network_interface:=<eth0|wlan0|vpn0>

Terminal 2:

roslaunch pepper_bringup pepper_full.launch nao_ip:=<yourRobotIP> roscore_ip:=<roscore_ip> network_interface:=<eth0|wlan0|vpn0>

The first parameter specifies the IP of your robot. Since there is no roscore running on the robot, we have to tell which roscore IP to use. That's the second parameter. The third parameter network_interface specifies the network interface the bridge is connected. By default, this is set to eth0. Changing this becomes important to establish a correct network connection between robot and computer, when you are connected via a different network device, such as wlan0 or vpn0 etc. In case you are not certain which device to use, verify with ifconfig and verify which network device has the correct IP.

⁠Python version

If you want to execute the Python bridge, we launch the second launch file.

Terminal 1:

roslaunch pepper_dcm_bringup pepper_bringup.launch robot_ip:=<yourRobotIP> network_interface:=<eth0|wlan0|vpn0>

Terminal 2:

roslaunch pepper_bringup pepper_full_py.launch nao_ip:=<yourRobotIP> roscore_ip:=<roscore_ip> network_interface:=<eth0|wlan0|vpn0>

NOTE If you start the bridge without launching a core, the launch file will automatically start one. This can be convenient, but if you keep turning your bridge on and off, it is better to keep a core open in the background, especially if you use RViz or if you kill the bridge brutally.

You also can run the Pepper bringup inside a bash shell without noVNC.

⁠Displaying Pepper in RViz

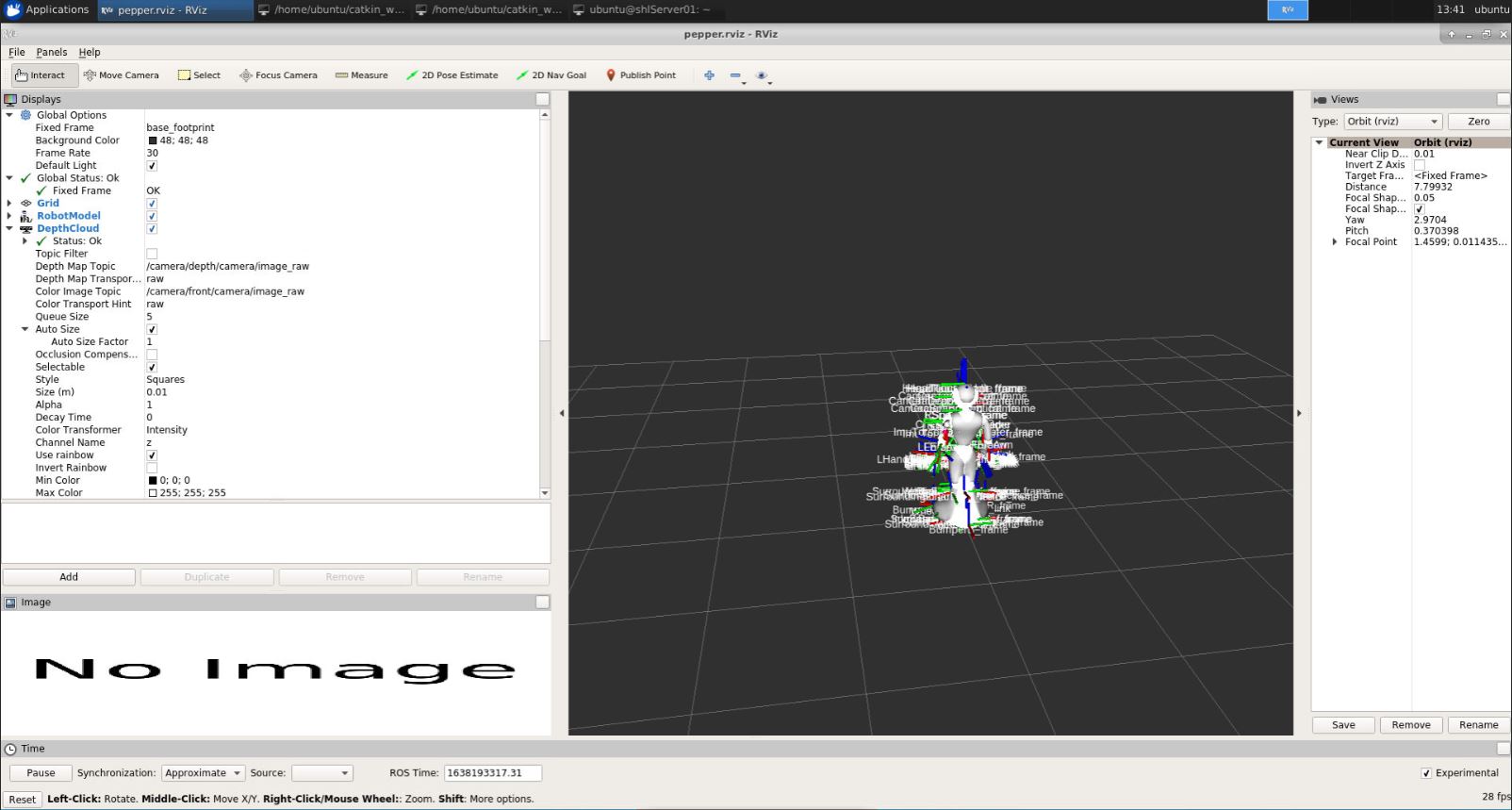

In order to visualize Pepper in RViz, simply open up a new RViz. Please take care to source your setup.bash as before.

rosrun rviz rviz

Notice this only works if you are using the noVNC desktop environment!

We provide a pre-configured RViz configuration which has all basic displays such as TF, RobotModel, Camera, Lasers and Sonars. This configuration can be found inside your catkin workspace under

src/pepper_description/config/pepper.rviz

You can run:

rosrun rviz rviz -d ~/catkin_ws/src/pepper_description/config/pepper.rviz

comming soon:

http://wiki.ros.org/pepper/Tutorials/Calibration⁠ http://wiki.ros.org/pepper_bringup⁠ http://wiki.ros.org/pepper_dcm_bringup⁠ https://github.com/ros-naoqi/pepper_moveit_config⁠ https://github.com/ros-naoqi/pepper_virtual⁠

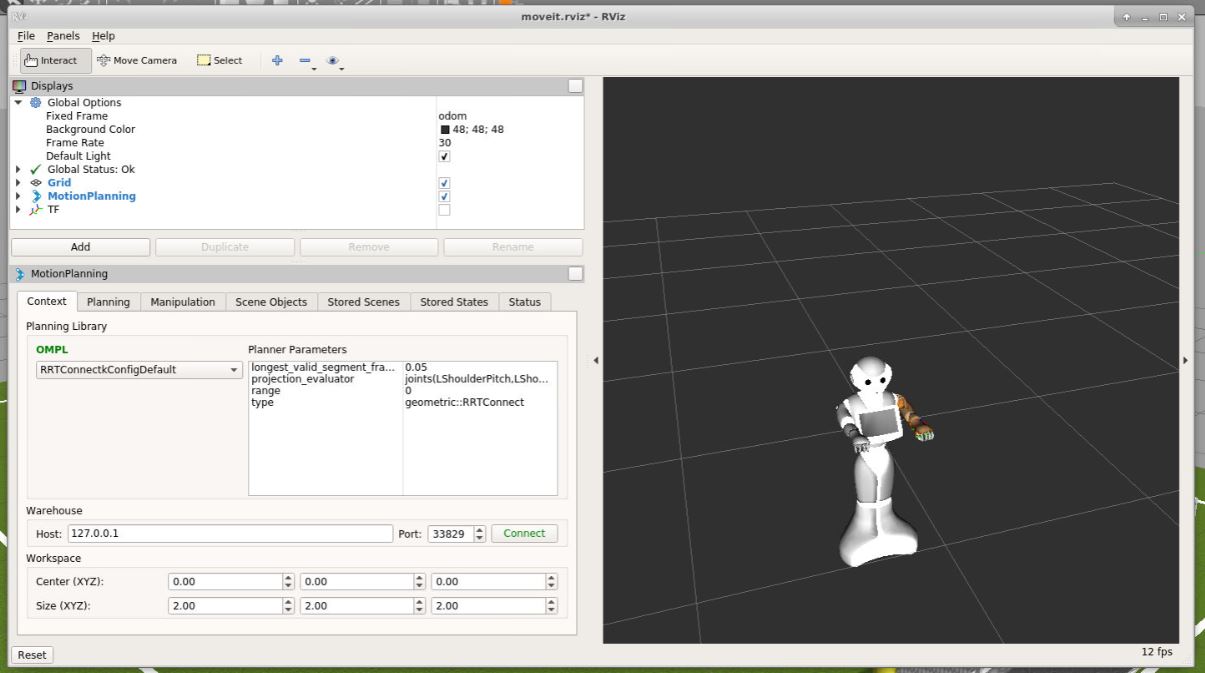

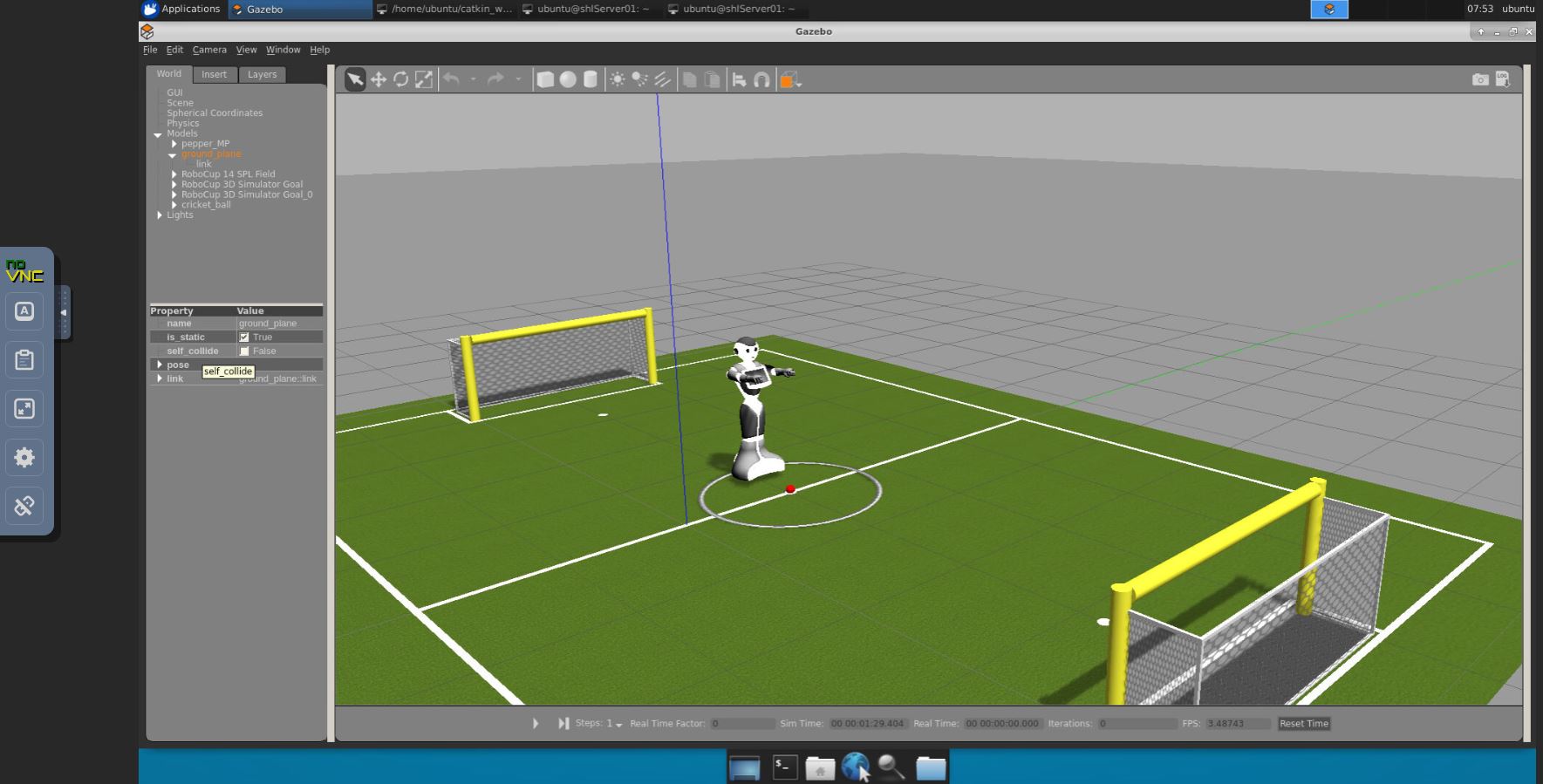

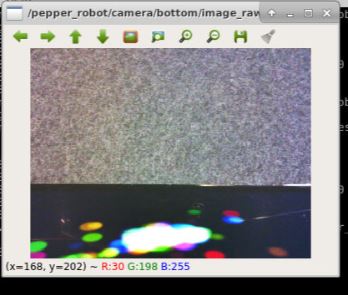

https://raw.githubusercontent.com/Michdo93/test2/main/gazebo.JPG⁠ https://raw.githubusercontent.com/Michdo93/test2/main/moveit.JPG⁠ https://raw.githubusercontent.com/Michdo93/test2/main/pepper_image_raw.JPG⁠
