⁠OpenCloud Scanner

Run your own web frontend for the OpenCloud security scanner. It checks a URL you submit, shows the security rating in the browser, and keeps the result only until its TTL runs out. Try the hosted service at https://scan.okxo.de⁠.

Source, deployment files and issue tracking: https://github.com/sowoi/check-opencloud-security⁠

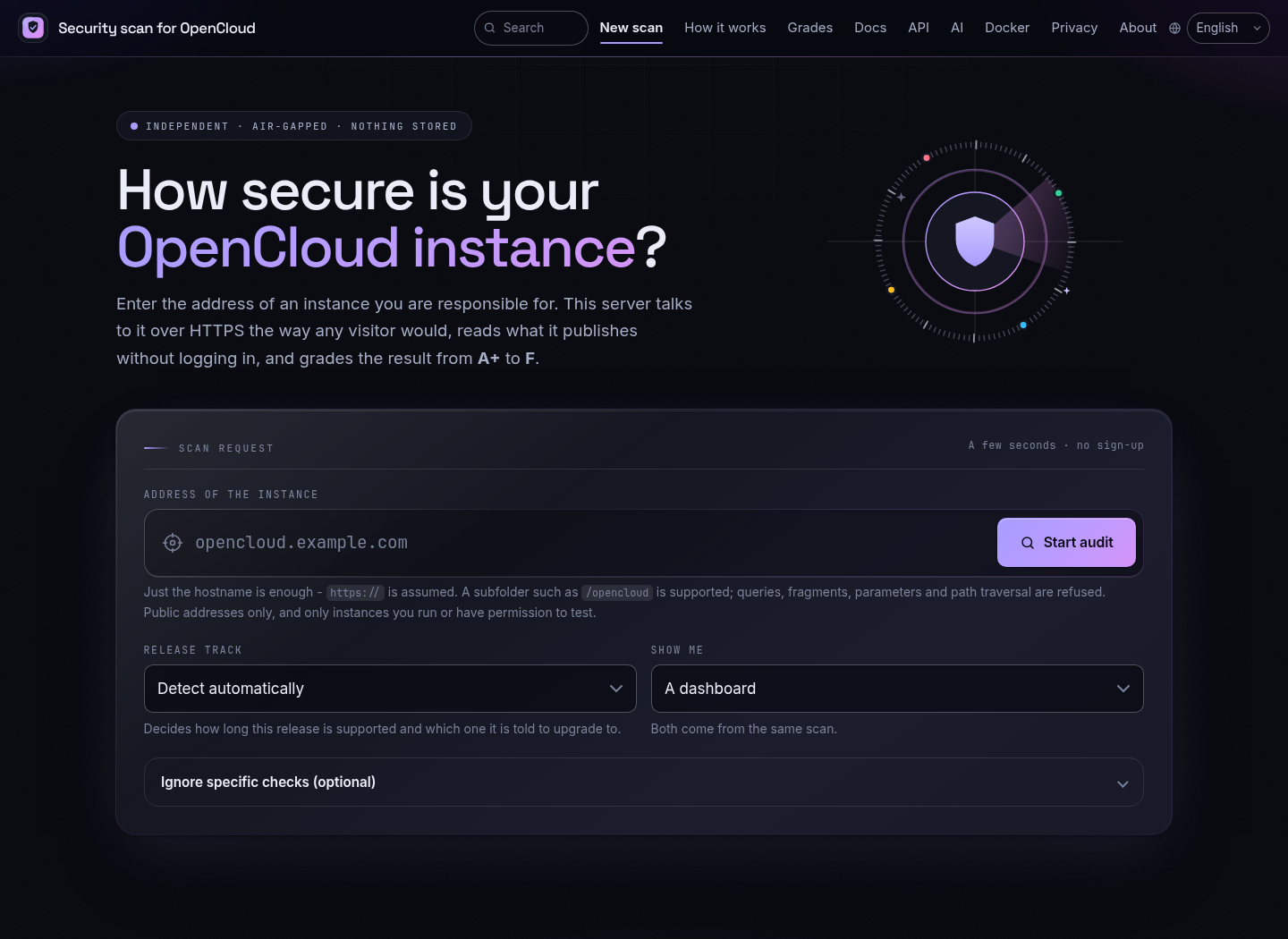

The hosted scanner's landing page

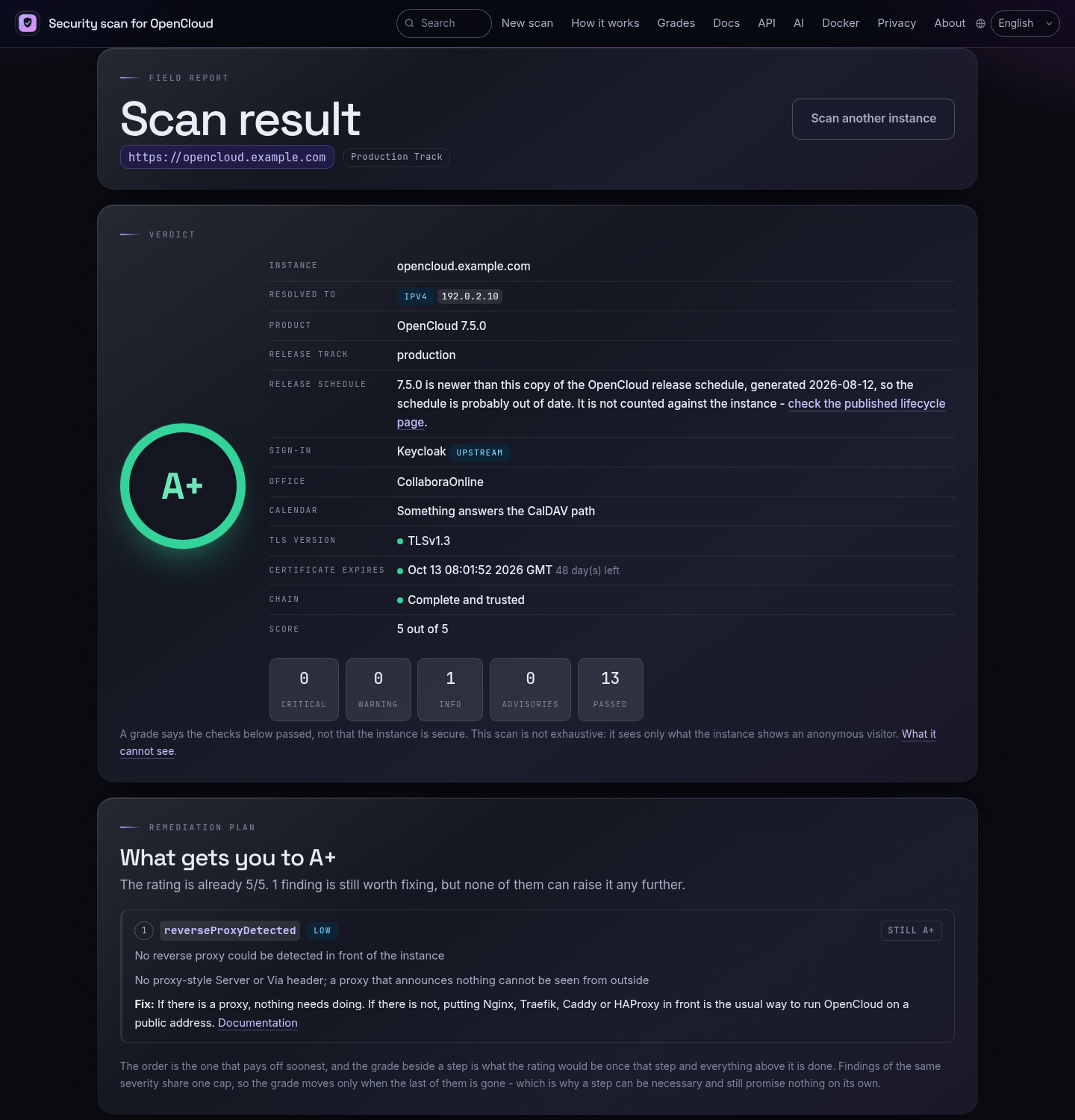

A completed scan of the OpenCloud demonstration instance

⁠Start here: the setup wizard

The service is three containers with about thirty settings between them, and several of those settings are credentials nobody should invent by hand. Instead of copying a compose file and editing it, answer the questions and let the wizard write both files for you.

It is one Python file, uses the standard library alone, and needs no checkout:

mkdir opencloud-scanner && cd opencloud-scanner

base=https://github.com/sowoi/check-opencloud-security/releases/latest/download
curl -fsSLO "$base/setup-wizard.py" -O "$base/setup-wizard.py.sha256"
sha256sum --check setup-wizard.py.sha256    # macOS: shasum -a 256 --check
chmod +x setup-wizard.py
./setup-wizard.py --version
./setup-wizard.py

docker compose up -d
# http://127.0.0.1:8811

It asks one question at a time, explains what each setting does, shows an example answer, and then writes two files into the directory you point it at:

a compose file with every non-secret answer inline and commented, so it stays something you can commit, diff and paste into a ticket;
a .env, created owner-readable only, holding every credential the compose file refers to as ${NAME}. The Redis password, the erasure token, the signing key, the audit salt and the encryption key never reach the compose file.

Answer generate at any credential and it creates one. The wizard also warns, before writing anything, about the combinations the service itself refuses to start on.

In a hurry, or installing unattended:

./setup-wizard.py --non-interactive     # every default, credentials generated
./setup-wizard.py --preset private      # scanning instances only you can reach
./setup-wizard.py --with-authentik      # bring an identity provider for /mcp

Flag	What it does
`--output-dir DIR`	Where the generated files go. Default: the current directory
`--compose-file NAME`	Name of the generated compose file. Default: `docker-compose.yml`
`--env-file NAME`	Name of the generated secrets file. Default: `.env`
`--preset public\|private`	Open to anybody, or scanning instances only you can reach
`--sign-in`	Require a bearer token on `/mcp`, against a provider you already run
`--with-authentik`	Add Authentik to the stack, provisioned to issue those tokens
`--non-interactive`	Ask nothing, take every default, generate the credentials
`--force`	Overwrite existing files without asking

The full flag list, including the Authentik mail settings, is in docker/README.md⁠.

⁠Pull the image

docker pull okxo/opencloud-scanner:latest

latest and MAJOR.MINOR.PATCH follow the released version, MAJOR.MINOR follows the line, and edge is the current main. The image carries linux/amd64 and linux/arm64, and the same image runs both the web service and the worker: they differ only in the command.

⁠Run the maintained Compose file

If you would rather have the file the project itself ships:

git clone https://github.com/sowoi/check-opencloud-security.git
cd check-opencloud-security/docker

printf 'COS_REDIS_PASSWORD=%s\n' "$(openssl rand -base64 36 | tr -d '/+=')" > .env
chmod 600 .env

docker compose -f docker-compose.dockerhub.yml up -d
# http://127.0.0.1:8811

That file defaults COS_WEB_PUBLIC_BASE_URL to http://localhost:8811 so the first up works. Put the address visitors actually use in .env before letting anybody else reach it.

⁠Write the compose file yourself

Save this as compose.yaml, put a COS_REDIS_PASSWORD in a .env beside it, and run docker compose up -d. Three things in it are load-bearing, and they are most of the reason the wizard exists:

COS_WEB_PUBLIC_BASE_URL is required. Canonical URLs, the sitemap and the agent discovery document must not be built from an incoming Host header, so the service refuses to start without one. Set it to the address visitors actually use.
Redis holds every live scan and every result still inside its TTL. It gets a password and an internal network with no route off the host, and publishes no port.
Concurrency is set here and nowhere else. COS_WEB_MAX_WORKERS and COS_WEB_SCAN_CONCURRENCY are the whole of this service's load on other people's servers, and nothing a visitor submits can change them.

services:
  redis:
    image: redis:8.10-alpine
    command: >
      redis-server --save "" --appendonly no
      --maxmemory 256mb --maxmemory-policy allkeys-lru
      --requirepass "${COS_REDIS_PASSWORD:-}"
    environment:
      REDISCLI_AUTH: "${COS_REDIS_PASSWORD:-}"
    networks: [scanner_internal]
    healthcheck:
      test: ["CMD", "redis-cli", "ping"]
      interval: 10s
      timeout: 3s
      retries: 5

  worker:
    image: okxo/opencloud-scanner:latest
    pull_policy: always
    command: ["python", "-m", "webapp.tasks"]
    depends_on:
      redis:
        condition: service_healthy
    networks: [default, scanner_internal]
    environment:
      COS_WEB_REDIS_URL: "redis://:${COS_REDIS_PASSWORD:-}@redis:6379/0"
      COS_WEB_PUBLIC_BASE_URL: "${COS_WEB_PUBLIC_BASE_URL:-http://127.0.0.1:8811}"
      COS_WEB_RESULT_TTL: "3600"
      COS_WEB_MAX_WORKERS: "5"
      COS_WEB_SCAN_CONCURRENCY: "4"
      COS_WEB_SCAN_TIMEOUT: "15"
      COS_WEB_PROBE_LIMIT: "5"
      COS_WEB_PROBE_WINDOW: "300"
      COS_WEB_PROBE_BLOCK: "3600"
      COS_WEB_PROBE_BLOCK_MAX: "86400"
      COS_WEB_PROBE_REPEAT_WINDOW: "86400"
      COS_WEB_JOB_TIMEOUT: "180"
      COS_WEB_ALLOW_PRIVATE_TARGETS: "false"
      COS_WEB_CHECK_DEBUG_PORTS: "false"
      COS_WEB_RELEASES_MODE: "off"
    healthcheck:
      test:
        [
          "CMD",
          "python",
          "-c",
          "import os; from redis import Redis; os.kill(1, 0); Redis.from_url(os.environ['COS_WEB_REDIS_URL']).ping()",
        ]
      interval: 30s
      timeout: 5s
      start_period: 10s
      retries: 3
    read_only: true
    tmpfs:
      - /tmp:size=16m
    security_opt:
      - no-new-privileges:true
    cap_drop:
      - ALL

  web:
    image: okxo/opencloud-scanner:latest
    pull_policy: always
    depends_on:
      redis:
        condition: service_healthy
    ports: ["127.0.0.1:8811:8811"]
    networks: [default, scanner_internal]
    environment:
      COS_WEB_REDIS_URL: "redis://:${COS_REDIS_PASSWORD:-}@redis:6379/0"
      COS_WEB_PUBLIC_BASE_URL: "${COS_WEB_PUBLIC_BASE_URL:-http://127.0.0.1:8811}"
      COS_WEB_RESULT_TTL: "3600"
      COS_WEB_IP_RATE_LIMIT: "10"
      COS_WEB_IP_RATE_WINDOW: "60"
      COS_WEB_TARGET_COOLDOWN: "300"
      COS_WEB_PROBE_LIMIT: "5"
      COS_WEB_PROBE_WINDOW: "300"
      COS_WEB_PROBE_BLOCK: "3600"
      COS_WEB_PROBE_BLOCK_MAX: "86400"
      COS_WEB_PROBE_REPEAT_WINDOW: "86400"
      COS_WEB_PROBE_IPV4_PREFIX: "24"
      COS_WEB_CLIENT_IPV6_PREFIX: "64"
      COS_WEB_DAILY_SCAN_LIMIT: "50"
      COS_WEB_DNS_CONSISTENCY_CHECK: "true"
      COS_WEB_REQUIRE_APPROVAL: "false"
      COS_WEB_TRUST_FORWARDED_FOR: "false"
      COS_WEB_RELEASES_MODE: "off"
    read_only: true
    tmpfs:
      - /tmp:size=16m
    security_opt:
      - no-new-privileges:true
    cap_drop:
      - ALL

networks:
  default:
  scanner_internal:
    internal: true

⁠Run with plain Docker

Two networks, because the application containers make outbound requests and Redis must not be able to:

docker network create opencloud-scanner
docker network create --internal opencloud-scanner-internal

REDIS_PASSWORD="$(openssl rand -base64 36 | tr -d '/+=')"

docker run -d --name opencloud-scanner-redis \
  --network opencloud-scanner-internal \
  redis:8.10-alpine redis-server --save "" --appendonly no \
  --maxmemory 256mb --maxmemory-policy allkeys-lru \
  --requirepass "$REDIS_PASSWORD"

docker run -d --name opencloud-scanner-worker \
  --network opencloud-scanner-internal \
  --read-only --tmpfs /tmp:size=16m \
  --security-opt no-new-privileges:true --cap-drop ALL \
  -e COS_WEB_REDIS_URL="redis://:$REDIS_PASSWORD@opencloud-scanner-redis:6379/0" \
  -e COS_WEB_PUBLIC_BASE_URL=http://127.0.0.1:8811 \
  -e COS_WEB_MAX_WORKERS=5 -e COS_WEB_SCAN_CONCURRENCY=4 \
  -e COS_WEB_SCAN_TIMEOUT=15 -e COS_WEB_JOB_TIMEOUT=180 \
  -e COS_WEB_ALLOW_PRIVATE_TARGETS=false \
  -e COS_WEB_CHECK_DEBUG_PORTS=false \
  okxo/opencloud-scanner:latest python -m webapp.tasks
docker network connect opencloud-scanner opencloud-scanner-worker

docker run -d --name opencloud-scanner-web \
  --network opencloud-scanner-internal \
  -p 127.0.0.1:8811:8811 \
  --read-only --tmpfs /tmp:size=16m \
  --security-opt no-new-privileges:true --cap-drop ALL \
  -e COS_WEB_REDIS_URL="redis://:$REDIS_PASSWORD@opencloud-scanner-redis:6379/0" \
  -e COS_WEB_PUBLIC_BASE_URL=http://127.0.0.1:8811 \
  -e COS_WEB_IP_RATE_LIMIT=10 -e COS_WEB_IP_RATE_WINDOW=60 \
  -e COS_WEB_TARGET_COOLDOWN=300 \
  -e COS_WEB_PROBE_LIMIT=5 -e COS_WEB_PROBE_WINDOW=300 -e COS_WEB_PROBE_BLOCK=3600 \
  -e COS_WEB_TRUST_FORWARDED_FOR=false \
  okxo/opencloud-scanner:latest
docker network connect opencloud-scanner opencloud-scanner-web

Open http://127.0.0.1:8811⁠. To stop and remove this stack:

docker rm -f opencloud-scanner-web opencloud-scanner-worker opencloud-scanner-redis
docker network rm opencloud-scanner opencloud-scanner-internal

⁠Where to go next

Question	Where it is answered
Every `COS_WEB_*` setting, the request pipeline, the isolation model, the HTTP API	`docs/webapp.md`⁠
What Redis holds, and how to secure and size it	`docs/redis.md`⁠
Putting it behind nginx, Apache, Caddy, Traefik or HAProxy	`docs/reverse-proxy.md`⁠
A sign-in on the `/mcp` agent endpoint	`docs/authentik.md`⁠
Running it on Kubernetes	`docs/kubernetes.md`⁠
Using the scanner from the command line instead	the README⁠

⁠Trademarks and affiliation

This is an independent community project. It is not affiliated with, endorsed by or supported by OpenCloud GmbH. "OpenCloud" and all related names and marks belong to their respective owners and are used here only to identify the software being checked.
