princekrroshan01/mcp-auth-server repository overview

⁠mcp-auth

mcp-auth is a provider-neutral OAuth platform for HTTP-based Model Context Protocol (MCP) resource servers.

It separates three concerns that are often coupled:

• MCP clients complete standard Authorization Code + PKCE.
• MCP resource servers validate narrowly scoped access tokens with a reusable Python or Go SDK.
• Identity providers and downstream APIs stay behind runtime-configured connectors.

An OIDC provider (a connector requesting openid, with a verified ID token) and a plain OAuth 2.0 provider (no openid, identity from userinfo_endpoint) are both supported. Endpoints may be configured directly or discovered from the issuer, and ID tokens may use RS256, PS256, or ES256. See OIDC or plain OAuth 2.0⁠.

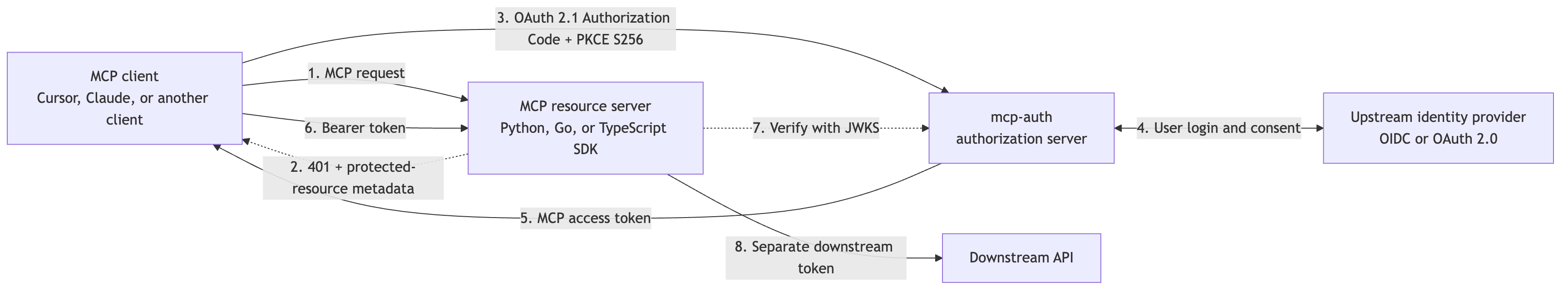

⁠How it fits together

flowchart LR
    client["MCP client<br/>Cursor, Claude, or another client"]
    resource["MCP resource server<br/>Python or Go SDK"]
    auth["mcp-auth<br/>authorization server"]
    idp["Upstream identity provider<br/>OIDC or OAuth 2.0"]
    api["Downstream API"]

    client -->|"1. MCP request"| resource
    resource -.->|"2. 401 + protected-resource metadata"| client
    client -->|"3. Authorization Code + PKCE"| auth
    auth <-->|"4. User login and consent"| idp
    auth -->|"5. MCP access token"| client
    client -->|"6. Bearer token"| resource
    resource -.->|"7. Verify with JWKS"| auth
    resource -->|"8. Separate downstream token"| api

The token sent by the MCP client is valid only for the MCP resource server. It is never forwarded to the downstream API. The resource server obtains a separate downstream credential through token exchange or the connector's upstream session.

⁠Choose your starting point

• Deploy the authorization server: Authorization server⁠
• Protect an MCP resource server: Auth client SDKs⁠
• Understand the complete protocol flow: Architecture⁠
• Run an end-to-end example: Demo MCP + Keycloak⁠
• Contribute or run tests: Local development⁠

The repository contains:

• auth-server/: a standalone Go OAuth authorization server.
• auth-client/python/: a reusable Python resource-server SDK, including a FastMCP adapter.
• auth-client/go/: a reusable Go resource-server SDK.
• examples/demo-mcp/: a dummy FastMCP resource server used by Compose E2E.

MCP authorization is optional at the protocol level. A resource server may still require it when it exposes private data or actions.

⁠Architecture

The authorization server owns login, consent, client registration, token issuance, refresh rotation, and connector selection. Resource servers remain independent: they use the SDK to publish discovery metadata, return the correct bearer challenge, validate JWTs locally from JWKS, and obtain downstream credentials when needed.

For sequence diagrams, credential boundaries, extension points, and deployment topologies, see Architecture⁠.

⁠Packages

Python resource servers can use:

from mcp_auth_client import JWTVerifier, RemoteAuthProvider, TokenExchangeClient

verifier = JWTVerifier(
    jwks_uri="https://auth.example.com/.well-known/jwks.json",
    issuer="https://auth.example.com",
    audience="https://mcp.example.com",
    required_scopes={"tools:read"},
)

Go resource servers can import the module under auth-client/go and use mcpauth.JWTVerifier, discovery helpers, and TokenExchangeClient.

The Python SDK is currently installed directly from Git while its API settles:

python -m pip install "mcp-auth-client @ git+https://github.com/Agent-Hellboy/mcp-auth.git#subdirectory=auth-client/python"

The authorization server selects a provider-neutral connector at runtime with MCP_AUTH_CONNECTORS_FILE and MCP_AUTH_CONNECTOR; the connector contains endpoints and environment-variable names for secrets, never secret values.

Publishing a GitHub Release (vX.Y.Z) builds auth-server and pushes princekrroshan01/mcp-auth-server to Docker Hub with that version tag, and latest for non-prerelease versions.

⁠Security model

• Authorization Code + PKCE (S256) is required for public clients.
• The token-exchange grant requires the caller to authenticate as a pre-registered resource server (RFC 7523 private_key_jwt) and presents only a subject_token this server itself issued; it is not an open relay to the upstream connector.
• Access tokens are short-lived JWTs with issuer, audience/resource, scopes, and unique IDs.
• Refresh tokens are opaque, hashed at rest, rotated on use, and revoked on reuse.
• OAuth state and credentials are abstracted behind persistence/key-provider interfaces; enterprise deployments should use shared durable storage plus a secret manager/KMS/HSM, not an unencrypted Docker volume. SQLite is suitable for a single auth-server instance; use a shared database adapter for multiple replicas.
• JWT verifiers allowlist algorithms and validate issuer, audience, expiry, and required scopes.
• Tokens are redacted from structured audit logs.
• Production deployments must use HTTPS, a persistent key provider, durable storage, restrictive CORS/trusted origins, and an upstream identity provider connector appropriate to the deployment.

⁠Demo resource server

examples/demo-mcp is a dummy MCP server. Compose E2E runs it with Keycloak as the identity provider. See docs/demo-example.md⁠.

⁠Documentation

• Architecture⁠
• Authorization server⁠
• Auth client SDKs⁠
• Demo MCP + Keycloak⁠
• Local development⁠

⁠Contributors

• Prince Roshan

⁠License

MIT. See LICENSE⁠.
