⁠On Air Record

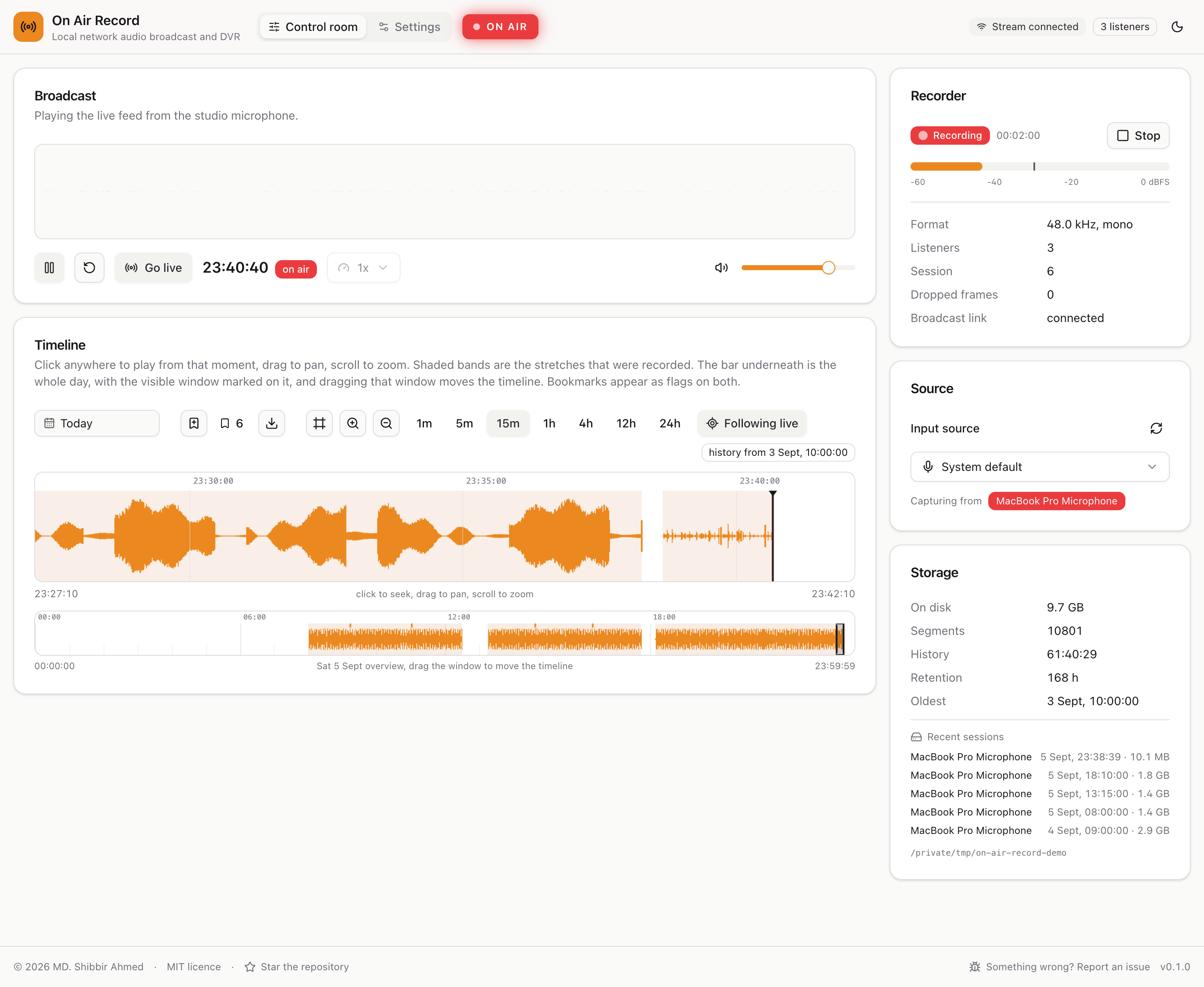

Records a microphone around the clock and broadcasts it live to every browser on your local network. Anyone on the network can listen live, or scrub back through the recordings on a CCTV style timeline, like a DVR for audio. One small service: no database, no web server, and logins only if you want them.

Linux hosts only. The container reaches the microphone through the host's sound devices in /dev/snd. Docker Desktop on macOS and Windows runs containers in a virtual machine that has no sound hardware, so there is nothing to pass through. On a Mac or a Windows PC, use the installers⁠ instead.

The same image, with the same tags, is on GitHub's registry as ghcr.io/shibbirweb/on-air-record, which has no pull rate limit. Either works.

⁠Quick start

Check the host can see a microphone first: ls -d /proc/asound/card*/pcm*c should print a line for it. Then, in an empty folder:

curl -fsSLO https://raw.githubusercontent.com/shibbirweb/on-air-record/master/packaging/compose.yaml

# The group number that owns the sound devices, and your time zone
audio_gid="$(stat -c %g /dev/snd/timer)"
zone="$(timedatectl show -p Timezone --value 2>/dev/null || readlink -f /etc/localtime | sed 's|.*/zoneinfo/||')"
printf 'AUDIO_GID=%s\nTZ=%s\n' "$audio_gid" "$zone" > .env

docker compose up -d

Open http://<this machine's address>:8080, answer the question about logins, and pick the microphone on the settings page.

To pull from Docker Hub rather than ghcr.io, change the image line in compose.yaml to shibbirweb/on-air-record:latest.

⁠Without Compose

docker run -d --name on-air-record --restart unless-stopped \
  -p 8080:8080 \
  --device /dev/snd \
  --group-add "$(stat -c %g /dev/snd/timer)" \
  -e TZ="$(timedatectl show -p Timezone --value 2>/dev/null || readlink -f /etc/localtime | sed 's|.*/zoneinfo/||')" \
  -v on-air-record_data:/data \
  --stop-timeout 30 \
  shibbirweb/on-air-record:latest

--stop-timeout 30 gives it time to close and index the recording in progress when it is stopped.

⁠Tags

Every tag is built for linux/amd64 and linux/arm64, which includes a Raspberry Pi running a 64 bit OS. Following betas? Also set OAR_CHANNEL=beta in the container's environment, so its update notices name the beta image.

⁠Microphone access

Nearly every problem is a permission problem, and they all look the same from the web page: no microphones. The container needs three things:

The group has to be a number: the name audio is looked up inside the container, where it is 29, while the host's may be 63 or anything else. The commands above read it from the devices themselves. Your own account does not need to be in the audio group, and the container never needs privileged or root.

The service tells you which one is missing. When it cannot reach the sound cards it says so in docker compose logs and in the recorder panel, with the fix, such as:

The container is not in the group that owns /dev/snd (group 63). Set AUDIO_GID=63 in .env and run
docker compose up -d, or with docker run add --group-add 63.

A microphone plugged in after the container started needs docker compose restart. The setup guide has a table of every symptom and its fix⁠, including SELinux, rootless Docker, and a muted input.

⁠Data, time zone and port

• Recordings, settings and accounts live in /data. The service runs as user 10001, so a folder of your own must be given to it first: sudo chown -R 10001:10001 /srv/on-air-record, then mount it with -v /srv/on-air-record:/data. On SELinux, add :Z.
• TZ must be your time zone, because recordings are filed by local calendar day. Without it every day is a UTC day.
• The port: change the left side of -p 8080:8080, or set OAR_PORT in .env with the compose file. The service inside always listens on 8080.

Disk use is about 330 MB per hour of recording at full quality, or 110 MB at voice quality. The settings page works out how much history fits and deletes the oldest recordings to stay inside it.

⁠Environment variables

Set these under environment: in compose.yaml, or with -e NAME=value on docker run:

The image sets OAR_PORT=8080, OAR_HOST=0.0.0.0, OAR_DATA_DIR=/data and OAR_CONTAINER=docker; leave them alone. In particular OAR_HOST=127.0.0.1 makes it unreachable through the port mapping while it still reports healthy; to limit who can reach it, publish the port on one address, like -p 127.0.0.1:8080:8080.

With the compose file, its .env holds AUDIO_GID (the group that owns /dev/snd), TZ, and OAR_PORT, which there is only the port on the host; the service inside stays on 8080. The setup guide lists every variable⁠ with more detail.

⁠Day to day

docker compose logs -f             # the log
docker compose ps                  # running, and healthy
docker compose pull && docker compose up -d                                 # update
docker exec on-air-record on-air-record auth reset-password [email protected] # forgotten admin password

The image checks its own health every 30 seconds. Healthy means the service is answering, not that it is recording. Admins are told in the app when a new version is out, with these same update commands.

⁠Keep it on your network

Do not expose the port to the internet, even with logins switched on: it is a microphone that is always on, built for a local network. Use a VPN to reach it from elsewhere.

⁠More

• Installation and setup⁠, the full Docker section
• User guide⁠, every screen of the app
• Source code and issues⁠, MIT licensed
