Using Docker with Drupal - Introduction

1

1.1K

tplcom/drupalcamp2016 repository overview

Docker logo

⁠Using Docker with Drupal - Introduction

⁠DrupalCamp 2016⁠, 1-3 July 2016
⁠TheodorosPloumis.com⁠ / @theoploumis⁠

⁠Get them: online presentation⁠ / source code⁠ / docker image⁠ / Video⁠
⁠Under Attribution 4.0 International⁠ license.

⁠What is Docker

Docker is an open platform for developing, shipping, and running applications.


⁠Docker History
WhenWhoLicenseGH stars
03/2013Solomon Hykes⁠Apache37k⁠

⁠Docker Benefits
  • Fast (deployment, migration, restarts)
  • Secure
  • Lightweight (save disk & CPU)
  • Open Source
  • Portable software
  • Microservices and integrations (APIs)
  • Simplify DevOps
  • Version control capabilities

⁠Common Docker usages
  • Scaling apps
  • Development collaboration
  • Infrastructure configuration
  • Sandbox (develop, test, debug, educate etc)
  • Local development
  • Continuous Integration & Deployment
  • Multi-tier applications
  • PaaS, SaaS
⁠See the survey results for 2016⁠

⁠Technology stack
⁠See more at Understanding docker⁠

⁠Docker components
  • (Docker) client
  • daemon
  • engine
  • machine
  • compose
  • swarm
  • registry

⁠Docker client

It is the primary user interface to Docker. It accepts commands from the user and communicates back and forth with a Docker daemon.


⁠Docker daemon

It runs on a host machine. The user does not directly interact with the daemon, but instead through the Docker client with the RESTful api or sockets.


⁠Docker engine

A Client with a Daemon as also as the docker-compose tool. Usually referred simply as "docker".

Docker engine logo


⁠Docker machine

It creates servers (locally, on cloud etc), installs Docker on them, then configures the Docker client to talk to them.

Docker machine logo


⁠Docker compose

A tool for defining and running complex applications with Docker (eg a multi-container application) with a single file.

Docker compose logo


⁠Docker swarm

Swarm pools together several Docker hosts and exposes them as a single virtual Docker host (cluster). It scale up to multiple hosts.

Docker swarm logo


⁠Docker distribution

A (hosted) service containing repositories of images which responds to the Registry API.

Docker distribution logo


⁠Steps of a Docker workflow
docker run -i -t ubuntu:15.04 /bin/bash

Screencast: Steps of a Docker workflow⁠.


⁠The Docker Components diagram

Docker components


⁠The docker image

ubuntu:15.04 image


⁠The docker container

container using ubuntu:15.04 image


⁠The Dockerfile

A Dockerfile is a text document that contains all the commands a user could call on the command line to create an image.


⁠Docker examples
  • SSH into a container
  • Common Docker commands
  • Linked⁠ containers
  • Docker Volume⁠
  • Using docker-compose⁠
  • Advanced usage of docker-compose
  • Scale containers with docker-compose

⁠Example: SSH into a container
docker pull ubuntu
docker run -it --name ubuntu_example ubuntu /bin/bash

Screencast: SSH into a container⁠


⁠Example: Common Docker Commands
// General info
docker help // docker help run
docker info
docker version
docker network ls

// Images
docker images // docker [IMAGE_NAME]
docker pull [IMAGE] //
docker push [IMAGE]
docker save [IMAGE] // commit, tag, export, load, rmi

// Containers
docker run ...
docker ps // docker ps -a, docker ps -l
docker stop/start/restart [CONTAINER]
docker stats [CONTAINER]
docker top [CONTAINER]
docker port [CONTAINER]
docker inspect [CONTAINER]
docker inspect -f "{{ .State.StartedAt }}" [CONTAINER]
docker rm [CONTAINER]

Screencast: Common Docker commands⁠


Let's create a Drupal app⁠ (apache, php, mysql, drupal)

docker pull drupal:8.2.3-apache
docker pull mysql:8

// Start a container for mysql
docker run --name mysql_example \
           -e MYSQL_ROOT_PASSWORD=root \
           -e MYSQL_DATABASE=drupal \
           -e MYSQL_USER=drupal \
           -e MYSQL_PASSWORD=drupal \
           -d mysql:8

// Start a Drupal container and link it with mysql
// Usage: --link [name or id]:alias
docker run -d --name drupal_example \
           -p 8280:80 \
           --link mysql_example:mysql \
           drupal:8.2.3-apache

// Open http://localhost:8280 to continue with the installation
// On the UI for the db host use: mysql

// There is a proper linking
docker inspect -f "{{ .HostConfig.Links }}" drupal_example

Screencast: Docker: Drupal and MySQL containers linked⁠


⁠Example: Docker volume

Let's mount local files to a docker container

cd ~/drupalcamp2016
drush dl drupal-8.2.3
cd ~/drupalcamp2016/drupal-8.2.3

// Start a container for mysql
docker run --name mysql_container \
           -e MYSQL_ROOT_PASSWORD=root \
           -e MYSQL_DATABASE=drupal \
           -e MYSQL_USER=drupal \
           -e MYSQL_PASSWORD=drupal \
           -d mysql:8

// Start drupal container with volume
// Folder "modules" locally is mounted to the container
docker run -d --name drupal_with_mysql_volumed \
           -p 8290:80 \
           --link mysql_container:mysql \
           -v $(pwd)/modules:/var/www/html/modules \
           drupal:8.2.3-apache

// Locally download devel module (assuming you have drush on host)
drush dl devel
// Devel module is available on the container


⁠Example: Using Docker Compose

Let's create a Drupal app using docker-compose.yml⁠

git clone [email protected]:theodorosploumis/drupalcamp2016.git \
          ~/drupalcamp2016/presentation
cd ~/drupalcamp2016/presentation/examples/docker-compose/simple

// Run docker-compose using the docker-compose.yml
docker-compose up -d

Screencast: Docker compose simple example⁠


⁠Example: More advanced docker-compose

Drupal + friends⁠ together.

cd ~/drupalcamp2016
git clone [email protected]:theodorosploumis/drupal-docker.git
cd ~/drupalcamp2016/drupal-docker

docker-compose up -d

// Open http://localhost:8082 (web)
// Open http://localhost:8090 (phpmyadmin)

// Prepare Drupal for installation
docker exec drupal_8082 bash /scripts/prepare-install.sh

// Install with Drush
docker exec drupal_8082 drush \
    site-install -y standard \
    --site-name="Drupal 8 with Docker - Drush" \
    --db-url=mysql://drupal:drupal@mysql/drupal \
    [email protected] \
    --account-name=admin \
    --account-pass=admin \
    [email protected]

Screencast: Drupal & PhpMyAadmin, Drush, Console etc⁠


⁠Example: Scale containers with docker-compose
cd ~/drupalcamp2016
git clone [email protected]:theodorosploumis/drupal-docker.git
cd ~/drupalcamp2016/drupal-docker

docker-compose up -d
// Continue as before and install Drupal with drush...

// Scale the Drupal slave service
docker-compose scale drupal_slave=10

// Show the new slave containers IP Addresses
docker exec drupaldocker_drupal_slave_1 hostname -I

// Show the IP Address using Docker
docker inspect -f '{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}' \
               drupaldocker_drupal_slave_1
...

// Slaves share the same mysql and files
docker exec drupaldocker_drupal_slave_1 drush status
docker exec drupaldocker_drupal_slave_2 drush status
...

Screencast: Scale Drupal with docker-compose⁠


⁠Docker for Drupal recipes

The Drupal "parts"

  • server
  • code
  • database
  • public/private files
  • helper software (eg drush, composer etc)

⁠Docker for Drupal - Combinations and Options
A/aPartDocker options
1ServerImage
2CodeImage, Volumes, Inside 1
3FilesNone (stage_file_proxy⁠), Image, Inside 2
4DatabaseImage, Inside 1
5HelpersImage, Inside 1, Volumes, None

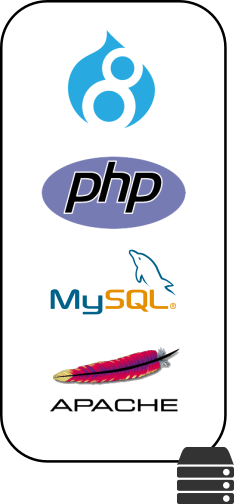

⁠From Monolithic apps

Monolithic Architecture

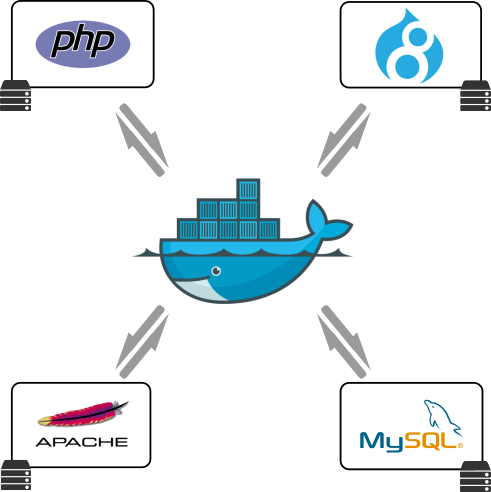

⁠To Containerized apps

Containerized Architecture


⁠Docker tips

There are known best practices (see a list at examples/tips⁠)

  • Optimize containers (see imagelayers.io⁠)
  • Create your own, tiny base images
  • Containers are not Virtual Machines
  • Full stack Images VS 1 process per Container
  • Use files/scripts to setup container
  • Prefer using docker-compose
  • Production needs orchestration

⁠The Docker war

⁠Docker alternatives

⁠Instead of Resources

⁠Questions?

Drupal over Docker!

$this->send('feedback⁠');


⁠Tools used: docker 1.12.3⁠ / docker compose 1.9.0⁠ / asciinema⁠ / oh my zsh⁠ / reveal.js⁠ /
